PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder

PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder

PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder
PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder

Large Image :  PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Usage: Winding Transformer Wire Coil
Motor: 4kw Winding Speed: 0 ~ 160rpm
Conductor Wire: Cu Wire Or Al Wire Conductor Type: Flat Wire Or Round Wire
Color: Optional Shaft Size: 40x40mm
High Light:

Oil Immersed Transformer Wire Coil Winder

,

Automatic PLC Control Coil Winding Machine

,

Wire Coil Winder 4kw

PLC Control Oil Immersed Transformer Wire Coil Winder Automatic Coil Winding Machine





Description of automatic coil winding machine ZPX800



Automatic coil winding machine ZPX800 is a special wire coil winder, which is mainly used to wind copper or aluminium wire to make transformer coils and other similar products. The automatic coil winding machine is provided with a movable tail stock, which makes it easy to take away the wound coil from the winding shaft. The automatic coil winding machine’s control system is based on PLC, which can achieve many automatic functions. The wire guide of the automatic coil winding machine is driven by one servo motor. With one touch screen and HMI, the automatic coil winding machine can be operated very easily.





Features of automatic coil winding machine ZPX800

  • slow starting
  • smooth running
  • full function
  • high automation
  • PLC control system
  • 50+ winding programs stored



Main parameters of automatic coil winding machine ZPX800



The standard specifications of automatic coil winding machine ZPX800 is as following,however, the automatic coil winding machine can also be manufactured as requested.

Center Height: 900mm
Winding Shaft Size: 40x40x1100mm
Maximum Winding Width: 800mm
Winding Power: 4kw
Winding Speed: 0 ~ 160 rpm
Maximum Flat Wire Size: 5mm x 12mm
Round Wire Diameter: Φ0.3mm ~ Φ5.0mm
Maximum Finished Coil OD.: Φ800mm
Maximum Capacity: 700kg
Minimum Spread Pitch: 0.01mm
Counting Mode: 5-digit counting
Counting Turn Range: 0 - 9999.9



PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder 0

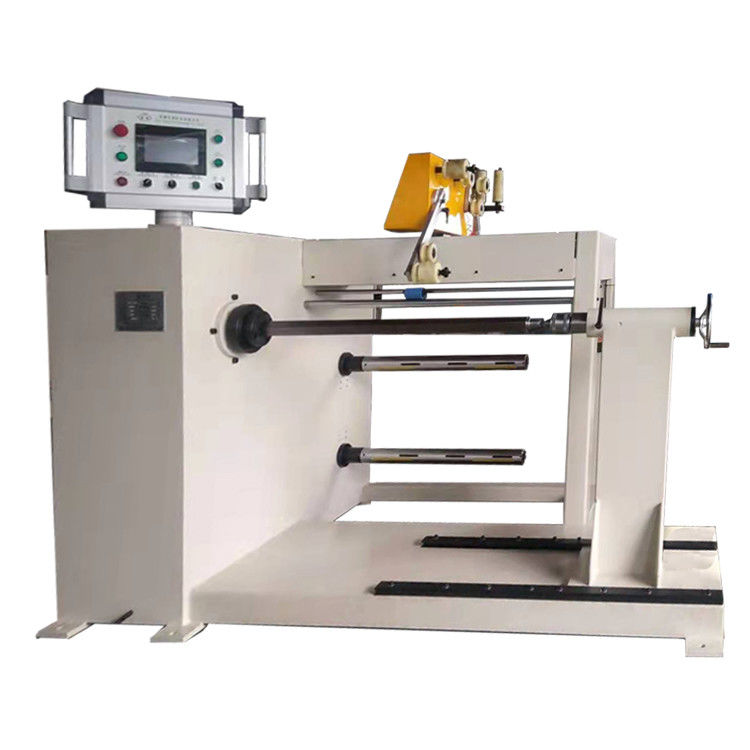

Fig 1: Automatic coil winding machine ZPX800's front view



PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder 1

Fig 2: Automatic coil winding machine ZPX800's wire guide



PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder 2

PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder 3

PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder 4

PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder 5PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder 6PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder 7PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder 8
