PLC Control Automatic Electrical Wire Winder For Transformer

Electrical Wire Winder Automatic Coil Winding Machine For Transformer

Description of automatic coil winding machine ZPX400

Automatic coil winding machine ZPX400 is one kind of wire winder for making transformer wire coils and other similar products. The automatic coil winding machine can wind both copper wire and aluminium wire. The automatic coil winding machine is provided with a wire guide for laying wire and the wire guide is driven by one servo motor, which guarantees the precision of its moving. The automatic coil winding machine features slow starting, smooth running and precision control etc. With the touch screen, it is very easy to operate the automatic coil winding machine.

Quick details of automatic coil winding machine ZPX400

• 900mm center height
• Maximum 400mm winding width
• Winding speed 0 - 200rpm
• Rotating diameter 500mm
• Winding power 3kw
• Servo motor power 0.75kw

Main parameters of automatic coil winding machine ZPX400

The typical standard specifications of automatic coil winding machine ZPX400 are as following, however, the coil winding machine can also be manufactured as requested.

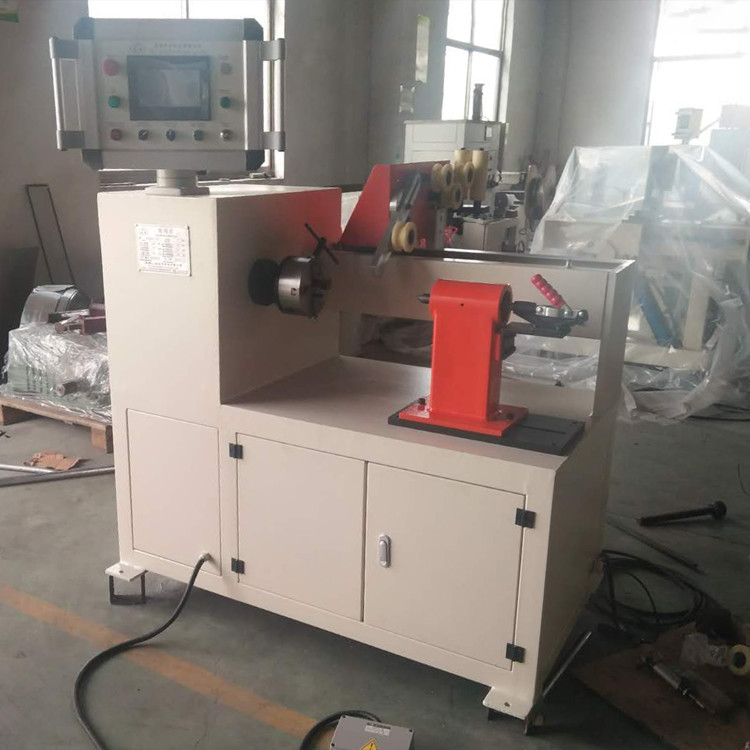

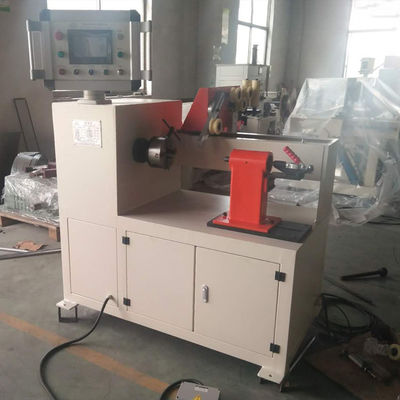

Fig 1: Automatic coil winding machine ZPX400's full view

Fig 2: Automatic coil winding machine ZPX400's four-jaw chuck
