PLC Control Automatic Electrical Wire Winder For Transformer

PLC Control Automatic Electrical Wire Winder For Transformer

PLC Control Automatic Electrical Wire Winder For Transformer
PLC Control Automatic Electrical Wire Winder For Transformer PLC Control Automatic Electrical Wire Winder For Transformer

Large Image :  PLC Control Automatic Electrical Wire Winder For Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Usage: Winding Wire Coil
Wire: Aluminium Or Copper Wire Conductor Type: Round Or Flat Wire
Round Wire: ∅0.3 - 4.0mm Flat Wire Size: Maximum 3x10mm
Control System: PLC Warranty: 12 Months
High Light:

PLC Control Electrical Wire Winder

,

Electrical Wire Winder For Transformer

,

Automatic Coil Winding Machine Electrical

Electrical Wire Winder Automatic Coil Winding Machine For Transformer





Description of automatic coil winding machine ZPX400



Automatic coil winding machine ZPX400 is one kind of wire winder for making transformer wire coils and other similar products. The automatic coil winding machine can wind both copper wire and aluminium wire. The automatic coil winding machine is provided with a wire guide for laying wire and the wire guide is driven by one servo motor, which guarantees the precision of its moving. The automatic coil winding machine features slow starting, smooth running and precision control etc. With the touch screen, it is very easy to operate the automatic coil winding machine.





Quick details of automatic coil winding machine ZPX400

  • 900mm center height
  • Maximum 400mm winding width
  • Winding speed 0 - 200rpm
  • Rotating diameter 500mm
  • Winding power 3kw
  • Servo motor power 0.75kw



Main parameters of automatic coil winding machine ZPX400



The typical standard specifications of automatic coil winding machine ZPX400 are as following, however, the coil winding machine can also be manufactured as requested.

Center height: 900mm
Square Shaft Size: 40x40x700mm
Maximum Winding Width: 400mm
Servo Motor Power: 0.75kw
Rotating Speed: 0 ~ 200 rpm
Motor Power: 3kw
Regulating Speed: stepless speed regulation
Flat Wire Size: Maximum 5X12mm
Round Wire Diameter: ∅0.3- ∅5.0mm
Rotating OD.: 500mm max
Maximum Capacity: 500kg
Minimum Spread Pitch: 0.01mm
Counting: 5-digit counting
Maximum Turns Preset: 9999.9
Counting Range: 0 ~ 9999.9



PLC Control Automatic Electrical Wire Winder For Transformer 0

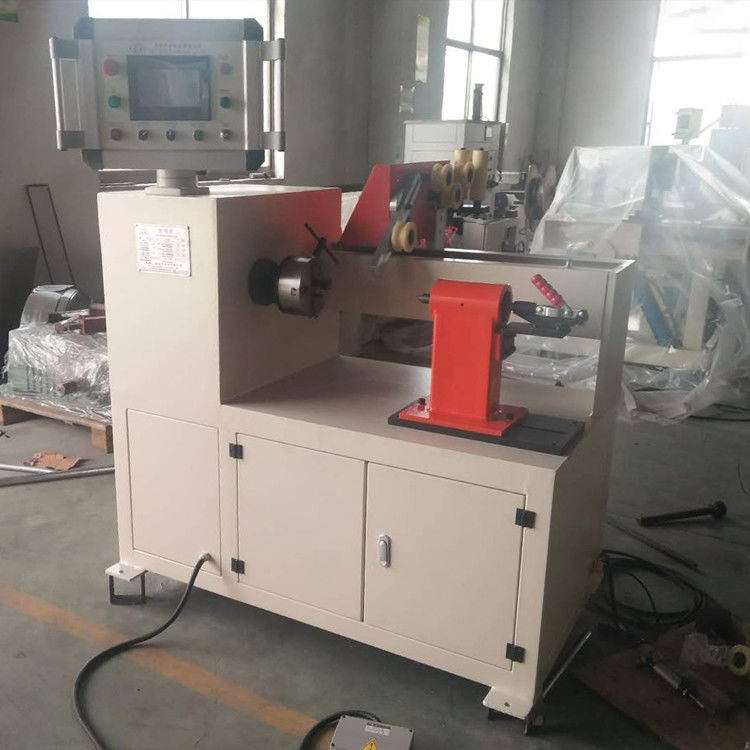

Fig 1: Automatic coil winding machine ZPX400's full view



PLC Control Automatic Electrical Wire Winder For Transformer 1

Fig 2: Automatic coil winding machine ZPX400's four-jaw chuck



PLC Control Automatic Electrical Wire Winder For Transformer 2PLC Control Automatic Electrical Wire Winder For Transformer 3PLC Control Automatic Electrical Wire Winder For Transformer 4PLC Control Automatic Electrical Wire Winder For Transformer 5PLC Control Automatic Electrical Wire Winder For Transformer 6PLC Control Automatic Electrical Wire Winder For Transformer 7PLC Control Automatic Electrical Wire Winder For Transformer 8PLC Control Automatic Electrical Wire Winder For Transformer 9
