Description of copper foil winding machine BRJ1000-2

Copper foil winding machine BRJ1000-2 is mainly used to wind copper or aluminium foil to make coils for dry type transformer. The copper foil thickness the copper foil winding machine can be used to wind is from 0.2 mm to 2.0mm, and the aluminium foil thickness is from 0.3mm to 3.0mm. The copper foil winding machine is provided with two foil decoilers and two insulation decoilers for placing foil and insulation paper. With PLC control system, the copper foil winding machine can be operated easily.

Main components of copper foil winding machine BRJ1000-2

• Main frame
• Winding unit
• Foil decoiler
• Insulation decoiler
• End-fill strip feeder
• Foil deburring system
• Edge alignment system
• Automatic welding unit

Technical parameters of copper foil winding machine BRJ1000-2

Typical standard specifications of copper foil winding machine BRJ1000-2 are shown below, however these can be easily modified as requested.

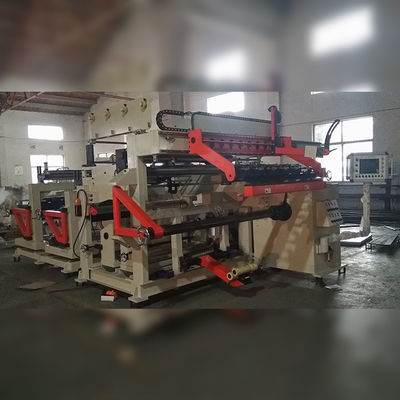

Fig 1: Copper foil winding machine BRJ1000-2's side view

Fig 2: Copper foil winding machine BRJ1000-2's welding pressure plate
