Professional Round Flat Wire Transformer Coil Winding Machine

Wire Rewinding Oil Transformer Coil Winding Machine

Description OF transformer coil winding machine ZPX250

Transformer coil winding machine ZPX250 is a special wire winder. This kind of electrical industry programmable small coil winding machine is mainly used to wind small coil with maximum height 250mm and maximum outer diameter 400mm. The programmable function provides the machine with many functions. The transformer coil winding machine is provided with:

• main winding motor,
• wire guide,
• touch screen,
• a foot pedal
• PLC
• VFD

Main features of transformer coil winding machine ZPX250

• Slow starting, when the machine begins to run, the rotating speed is very slow for safety, after several seconds, usually 0-5 seconds, which can be preset, the rotating speed will reach normal speed
• Smooth running, strong steel welded frame guarantees the machine runs smoothly
• High automation, with control system based on PLC, this winding machine can run automatically after inputting relevant parameters
• Full function, high automation guarantees the machine with many functions
• Easy operating, user friendly interface makes the operating very easy

Technical parameters of transformer coil winding machine ZPX250

Typical standard specifications of ZPX250 are shown below and the transformer coil winding machine can also be manufactured as requested.

• Center height 900mm
• Tailstock live center
• Motor power 2.2kw
• Maximum flat wire 5.0x12.0mm
• Round wire Ø0.3 ~ 5.0mm
• Maximum finished coil height 250mm
• Maximum finished coil outer diameter 400mm
• Minimum spread pitch 0.01mm
• Counting 0-9999.9

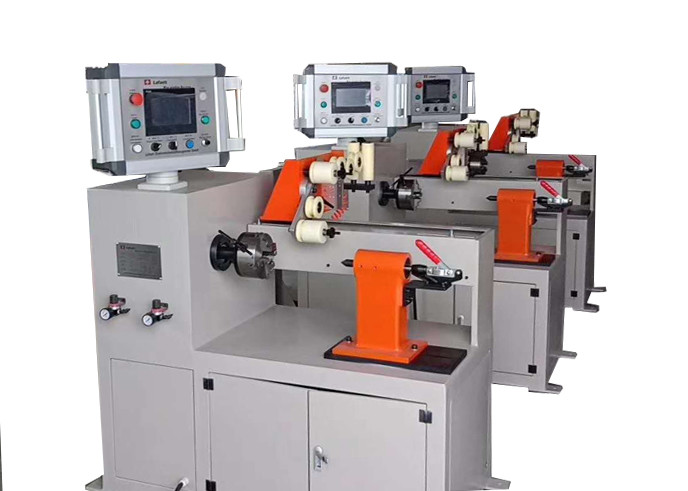

Fig 1: Automatic coil winding machine ZPX250's full view


Fig 2: Automatic coil winding machine ZPX250's wire guide
