Programmable Automatic Cast Resin Transformer Winder Machine With TIG

Programmable Automatic Cast Resin Transformer Foil Winding Machine With TIG

Quick details of transformer foil winding machine BRJ600-2

• Maximum foil width 600mm
• Foil material ID 500mm
• Foil material OD 1000mm
• Winding speed 26rpm
• Winding power 11kw
• Automatic TIG welding
• Two foil decoilers
• One year warranty

Description of transformer foil winding machine BRJ600-2

Programmable Automatic Cast Resin Transformer Foil Winding Machine BRJ600-2 is mainly used to wind transformer foil coil and other similar products. The transformer foil winding machine can be used to wind copper or aluminium strip. The transformer foil winding machine is provided with pneumatic brake system for foil decoilers and insulation decoiler to provide tension to make sure the coil can be wound tightly when winding. With photoelectric sensors, the transformer foil winding machine can correct the position of foil, which can make the foil edge neat when winding. HMI makes sure the operating easy and intuitive.

Main parameters of transformer foil winding machine BRJ600-2

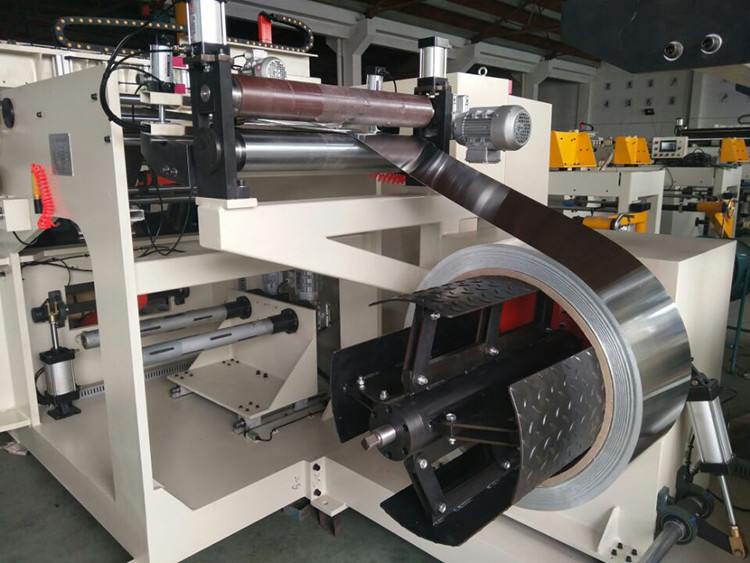

Fig 1: Transformer foil winding machine BRJ600-2's front view

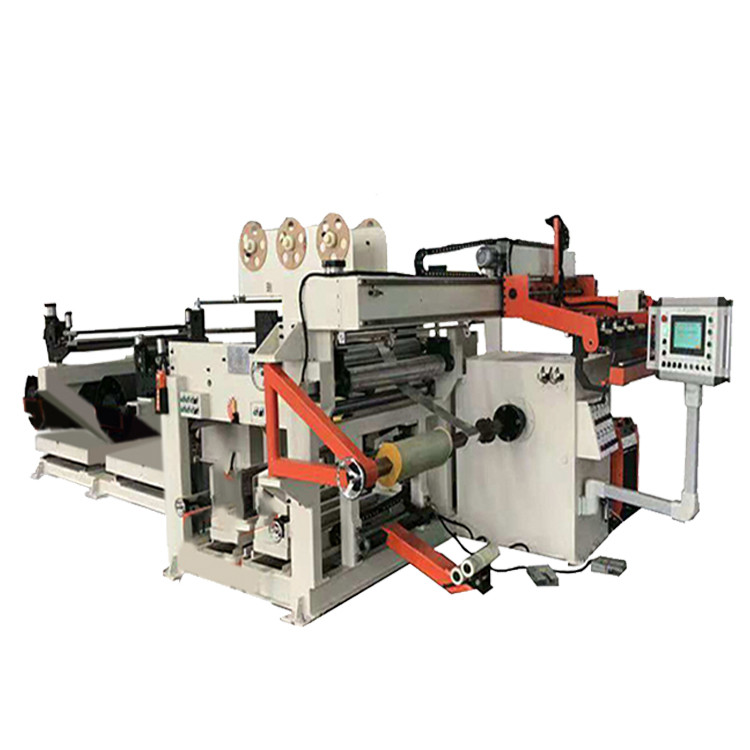

Fig 2 :Transformer foil winding machine BRJ600-2
