Description of copper foil winding machine XB-BRJ300

Automatic copper foil winding machine XB-BRJ300 is one type of special equipment for winding small foil coil and other similar products. The copper foil winding machine can be used to wind copper or aluminium strip with maximum width 300mm. With one foil decoiler and one insulation paper decoiler, the copper foil winding machine can handle one layer of copper or aluminium foil and one layer of insulation paper. This kind of copper foil winding machine is provided with PLC control system, which makes the machine run automatically as per the parameters input. It is very easy to operate the copper foil winding machine through a touch screen.

Main Components of copper foil winding machine XB-BRJ300

1. Main frame

2. Foil decoiler

3. Pressing roller

4. Winding unit

5. Insulation decoiler

6. Edge alignment system

7. Automatic cold welding unit

8. Pneumatic unit

9. Electrical control system

10. Foot pedal

Technical parameters of copper foil winding machine XB-BRJ300

Typical standard specifications of copper foil winding machine XB-BRJ300 are shown below, however these can be modified as requested.

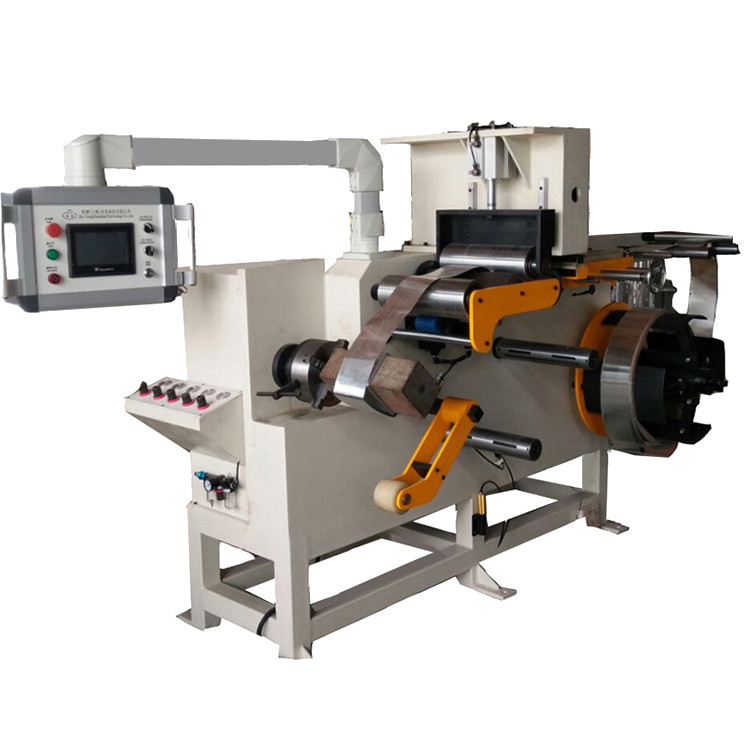

Fig 1: Copper foil winding machine XB-300's front view

Fig 2: Copper foil winding machine XB-BRJ300's insulation paper dereelers
