| Name: | Transformer Foil Winding Machine | Application: | Making Transformer Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Motor Power: | 5.5kw | Winding Speed: | 35rpm |
| Foil Decoiler: | 1 Set | Insulation Decoiler: | 2 Set |
| High Light: | 5.5kw Cantilever foil coil winding machine,35rpm Cantilever copper coil winder,35rpm Transformer foil coil winding machine |
||
Factory Direct Sales Copper Strip Winder Cantilever Transformer Foil Winding Machine
Description of transformer foil winding machine
Cantilever transformer foil winding machine XB-BRJ300 is a special winding equipment for winding small transformer coil and other similar products. The transformer foil winding machine can wind copper or aluminium strip with max width 300mm. The transformer foil winding machine can handle one layer of foil and one or two layers of insulation paper. This kind of transformer foil winding machine is provided with PLC control system, which can make the machine run automatically as per the parameters input.
Main Components of transformer foil winding machine
1. Main frame
2. Foil decoiler
3. Pressing roller
4. Winding unit
5. Insulation decoiler
6. Edge alignment system
7. Automatic cold welding unit
8. Pneumatic unit
9. Electrical control system
10. Foot pedal
Technical Parameters of transformer foil winding machine XB-BRJ300
Typical standard specifications of transformer foil winding machine XB-BRJ300 are shown below, however these can be modified as requested.
| Max Foil Material Width: | 300mm |
| Max. Axial Length ( incl. lead wire ): | 450mm |
| Finished Coil OD. : | 600mm |
| Coil Shape: | Round, Oval and Rectangle etc. |
| Conductor Foil Material: | Copper or aluminum |
| Cu Foil Thickness: | 0.2-2.0mm |
| Al Foil Thickness: | 0.3-3.0mm |
| Foil Material ID.: | ≤ 500mm |
| Foil Material OD.: | ≤ 1000mm |
| Foil Decoiler Number: | 1 pc |
| Foil Decoiler Expanding Range: | 420-520mm |
| Max Coil Weight: | 750kg |
| Cleaning Unit Control Mode: | pneumatic |
| Insulation Decoiler Number: | 1 pc |
| Insulation Paper Coil OD.: | ≤ 400mm |
| Insulation Paper Coil ID.: | 76mm |
| Insulation Decoiler Width | 350mm |
| Insulation Paper Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Winding Speed: | 0～35 RPM |
| Winding Power: | 5.5kw |
| Programming Type: | PLC |
| Operation Interface: | Touch screen |
| Counting Turn Range: | 0 - 9999.9 |

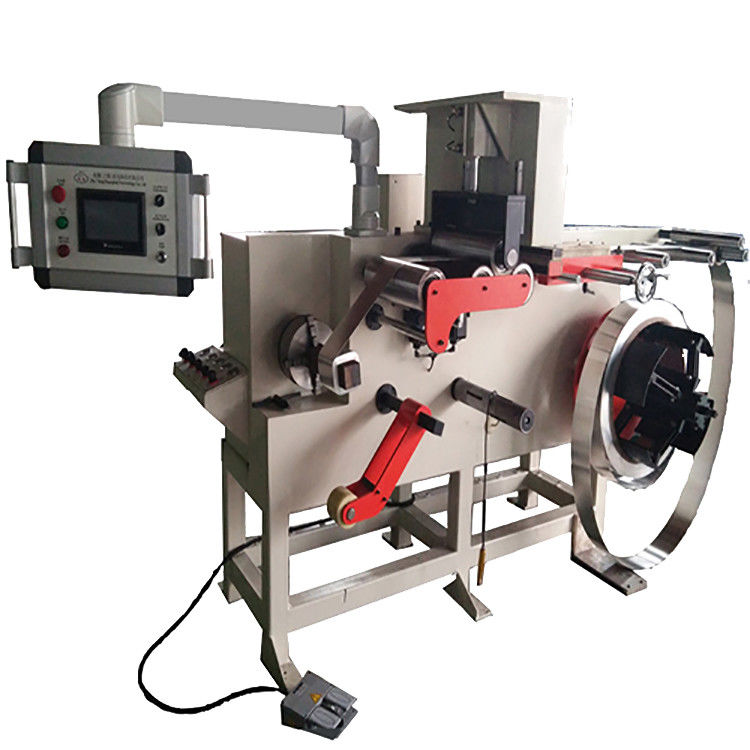

Fig 1: Transformer foil winding machine XB-BRJ300's full view

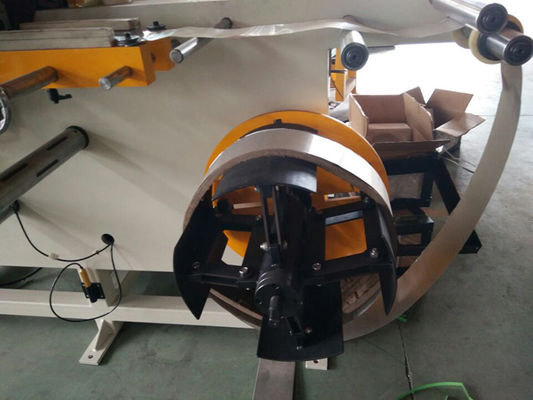

Fig 2: Transformer foil winding machine XB-BRJ300's foil decoiler
