PLC Control 300mm Width Strip Winder Cantilever Transformer Foil Winding Machine
Description of transformer foil winding machine XB-BRJ300-2
Cantilever transformer foil winding machine XB-BRJ300-2 is provided with two foil decoilers, which makes the winding machine can wind one or two layers of strip conductor with maximum width 300mm. The transformer foil winding machine can also wind two layers of insulation paper. The winding machine is simple and ease to be operated.
Quick details of transformer foil winding machine XB-BRJ300-2
Technical Parameters of transformer foil winding machine XB-BRJ300-2
Typical standard specifications of transformer foil winding machine XB-BRJ300-2 are shown below, however these can be modified as requested.
| Maximum Strip Width: | 300mm |
| Maximum Axial Length ( incl. lead wire ): | 450mm |
| Finished Coil OD. : | 600mm |
| Coil Shape: | Round, Oval and Rectangle etc. |
| Conductor Material: | Copper or aluminum strip |
| Cu Foil Thickness: | 0.2-2.0mm |
| Al Foil Thickness: | 0.3-3.0mm |
| Foil Material ID.: | ≤ 500mm |
| Foil Material OD.: | ≤ 1000mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Expanding Range: | 420-520mm |
| Max Coil Weight: | 750kg |
| Cleaning Unit : | pneumatic |
| Insulation Decoiler Number: | 2 pc |
| Insulation Paper Coil OD.: | ≤ 400mm |
| Insulation Paper Coil ID.: | 76mm |
| Insulation Decoiler Width | 350mm |
| Insulation Decoiler: | Expandable (pneumatic open/close action) |
| Rotating Speed: | 0～35 RPM |
| Motor Power: | 5.5kw |
| Control System: | PLC |
| Interface: | Touch screen |
| Counting Turn Range: | 0 - 9999.9 |

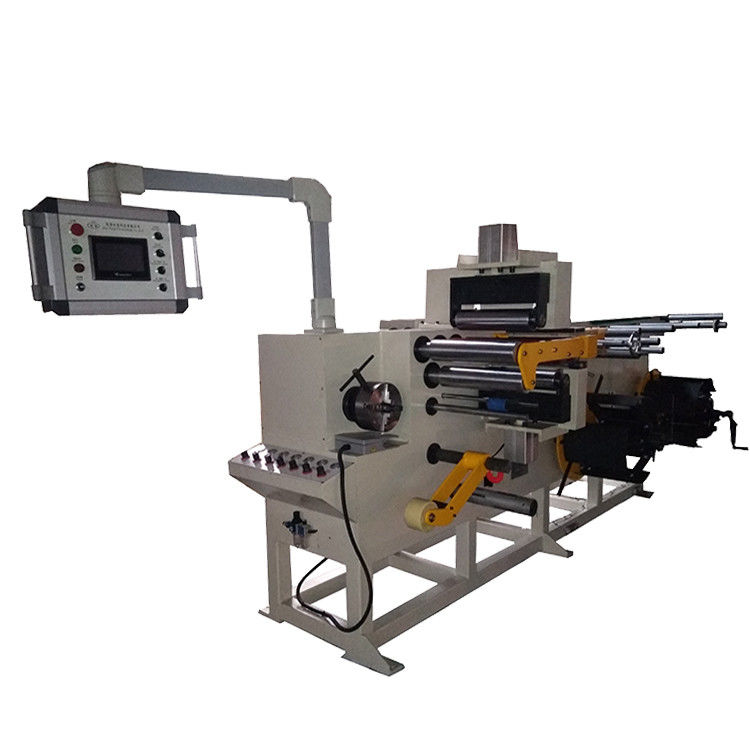

Fig 1: Transformer foil winding machine XB-BRJ300-2's full view

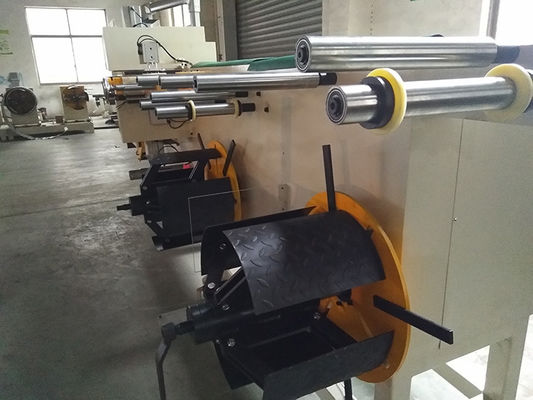

Fig 2: Transformer foil winding machine XB-BRJ300-2's foil decoiler
