Description of automatic coil winding machine ZPX800

Automatic coil winding machine ZPX800 is one kind of electrical wire winder equipment. The automatic coil winding machine can wind both copper wire and aluminium wire automatically after entering some corresponding parameters. The wound wire coils can be used to make transformers and other similar products. The maximum winding width of this type automatic coil winding machine is 800mm. The automatic coil winding machine is provided with one wire guide and the wire guide is driven by a servo motor, which guarantees the wire guide to move precisely. With HMI and PLC control system, the automatic coil winding machine can be operated easily.

Main parameters of automatic coil winding machine ZPX800

The typical standard specifications of automatic coil winding machine ZPX800 is as following, however, the coil winding machine can also be manufactured as requested.

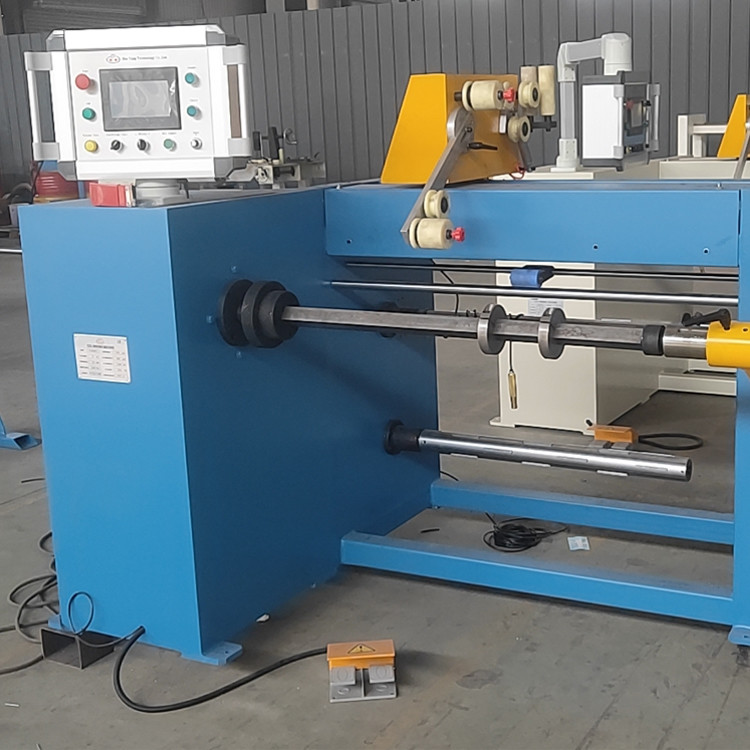

Fig 1: Automatic coil winding machine ZPX800's front view

Fig 2: Automatic coil winding machine ZPX800's wire guide
