Transformer Making Automatic Coil Winding Machine PLC Control

PLC Control Transformer Making Equipment Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX150-3

Automatic coil winding machine ZPX150-3 is one of high effective wire winders. This kind of coil winding machine can wind three coils at once and the maximum height of each coil is 150mm. The automatic coil winding machine is provided with one 750w servo motor to drive the wire guide, which guarantees the precision of the wire guide moving. The automatic coil winding machine can be used to winding both round wire and flat wire. Moreover, the winding machine can be customized as requested.

Main components of coil winding machine ZPX150-3

1. Main steel frame, it is very stong and is welded with steel

2. Main winding unit, 4 kw motor provides enough pulling force for the machine

3. Servo motor driven wire guide

4. VFD

5. PLC based control system,

6. Pneumatic system

7. Foot pedal

Technical parameters of automatic coil winding machine ZPX150-3

Typical standard specifications of coil winding machine ZPX150-3 are shown below, however, the winding machine can also be manufactured as requested.

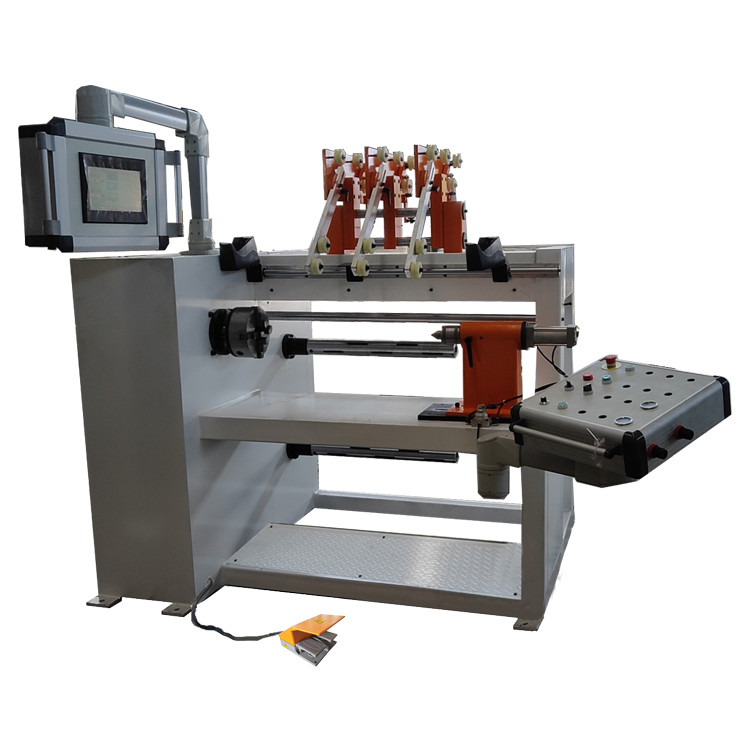

Fig 1: Automatic coil winding machine ZPX150-3's full view

Fig 2: Automatic coil winding machine ZPX150-3's wire guide
