Transformer Making Automatic Coil Winding Machine PLC Control

Transformer Making Automatic Coil Winding Machine PLC Control

Transformer Making Automatic Coil Winding Machine PLC Control
Transformer Making Automatic Coil Winding Machine PLC Control

Large Image :  Transformer Making Automatic Coil Winding Machine PLC Control Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPX150-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Coil Winding Machine Application: Winding Wire Coil
Motor Power: 4kw Winding Speed: 0 ~ 160rpm
Conduct: Cu Wire Or Al Wire Wire Type: Flat Or Round Wire
Wire Size: 0.3mm ~ 5.0mm Warranty: 12 Months
High Light:

Transformer Making Equipment PLC Control

,

160rpm Coil Winder

,

PLC Control Coil Winder

PLC Control Transformer Making Equipment Automatic Coil Winding Machine





Description of automatic coil winding machine ZPX150-3



Automatic coil winding machine ZPX150-3 is one of high effective wire winders. This kind of coil winding machine can wind three coils at once and the maximum height of each coil is 150mm. The automatic coil winding machine is provided with one 750w servo motor to drive the wire guide, which guarantees the precision of the wire guide moving. The automatic coil winding machine can be used to winding both round wire and flat wire. Moreover, the winding machine can be customized as requested.





Main components of coil winding machine ZPX150-3



1. Main steel frame, it is very stong and is welded with steel

2. Main winding unit, 4 kw motor provides enough pulling force for the machine

3. Servo motor driven wire guide

4. VFD

5. PLC based control system,

6. Pneumatic system

7. Foot pedal





Technical parameters of automatic coil winding machine ZPX150-3



Typical standard specifications of coil winding machine ZPX150-3 are shown below, however, the winding machine can also be manufactured as requested.

Center Height: 900 mm
Square Shaft Size: 40x40x600 mm
Round Wire Diameter: 0.3~4.0 mm
Maximum Flat Wire Size: 3x10 mm
Maximum Finished Coil OD.: 400 mm
Maximum Each Coil Length: 150 mm
Motor Power: 4kw
Rotating Speed: 0~200 rpm
Winding Speed Regulation: Variable frequency and stepless speed regulation
Control system: PLC
Minimum Spread Pitch: 0.01 mm
Counting Mode: 5-digit counting,
Max. Turns Number Preset: 9999.9


Transformer Making Automatic Coil Winding Machine PLC Control 0

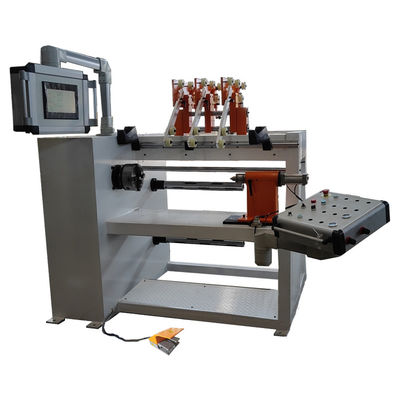

Fig 1: Automatic coil winding machine ZPX150-3's full view
