Description of transformer coil winding machine ZPX1200

Transformer coil winding machine ZPX1200 is one kind of transformer coil winding machine. The transformer coil winding machine can be used to wind both round wire and flat wire to make transformer coils and other similar products. With a wire guide driven by a servo motor, the transformer coil winding machine can lay the wire automatically. With control system based on PLC, the transformer coil winding machine is with rich functions. With a touch screen, it is very easy to operate the coil winding machine.

Main components of transformer coil winding machine ZPX1200

1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system

Technical parameters of transformer coil winding machine ZPX1200

Typical standard specifications of transformer coil winding machine ZPX1200 are shown below and the transformer coil winding machine can also be manufactured as requested.

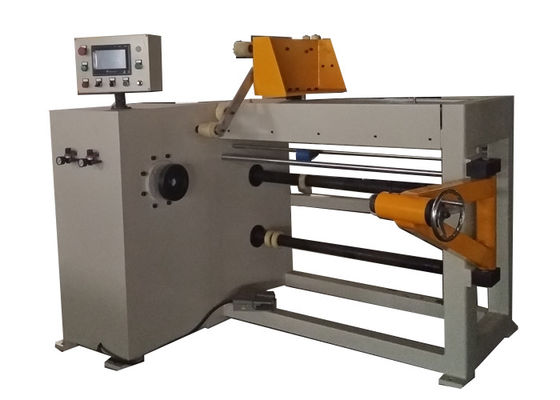

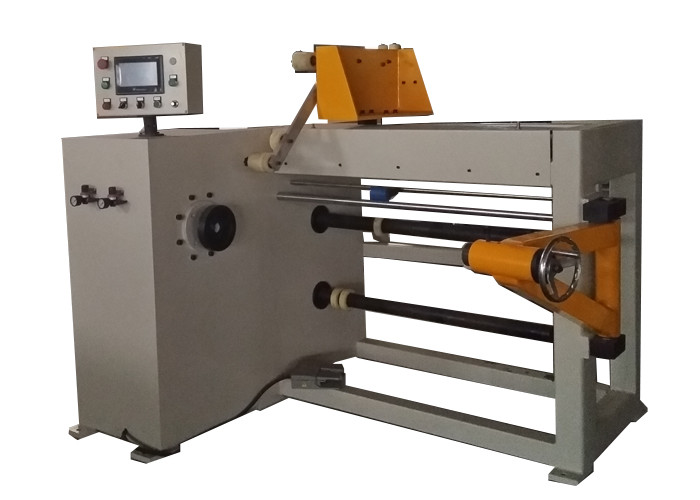

Fig 1: Transformer coil winding machine ZPX1000's front view

Fig 2: Transformer coil winding machine ZPX1000's wire guide
