Transverse Length 1200mm Flat Round Wire Winder Transformer Coil Winding Machine
Description of transformer coil winding machine ZPX1200

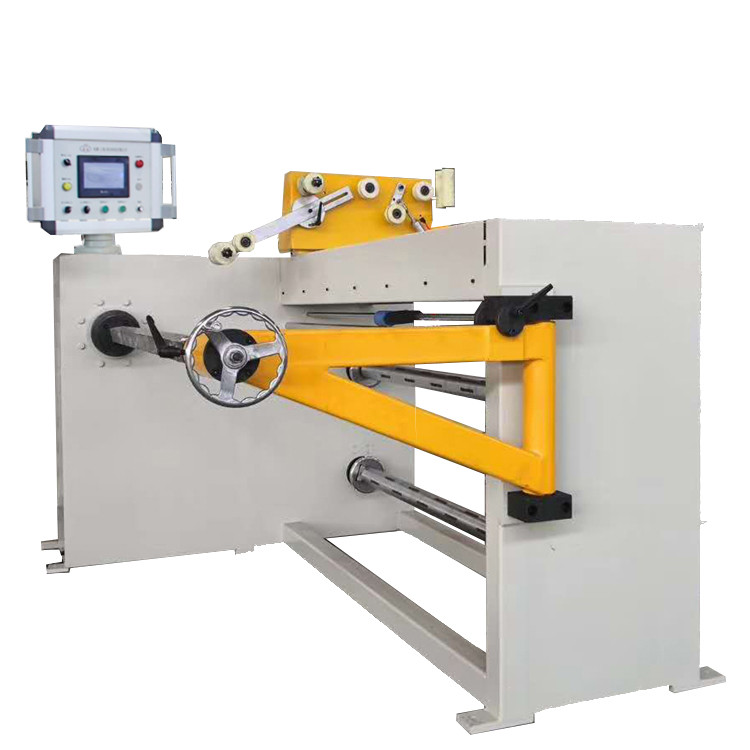

Transformer coil winding machine ZPX1200 is one of heavy duty transformer coil winding machines. The transformer coil winding machine can be used to wind oil type transformer coil with max height 1200mm. The transformer coil winding machine is provided with a wire guide to lay the wire. Servo motor is used to drive the wire guide, which guarantees the precision and the reliability. The transformer coil winding machine features slow starting, smooth running, high automation, full functions, and strong driving force, etc.

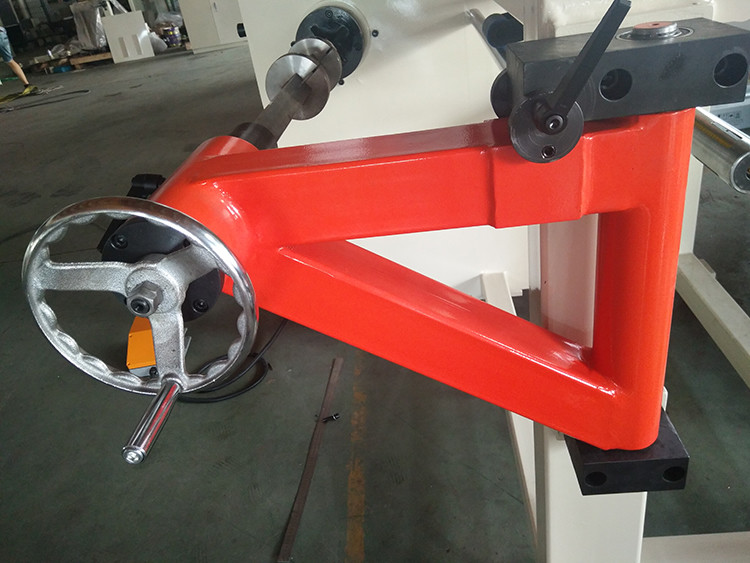

Main Components of transformer coil winding machine
1. Main frame
2. Winding unit
3. Automatic wire laying unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical Parameters of transformer coil winding machine
Typical standard specifications of transformer coil winding machine ZPX1200 are shown below, however these can be easily modified as requested.
Center Height: 900mm
Shaft length: 1500mm
Max. Winding Width: 1200mm
Winding Power: 5.5Kw
Winding Speed: 0-80 rpm
Speed Regulation: Variable frequency and stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: 0.3 - 5.0mm
Max. Finished Coil OD.: 800mm
Max. Loading Capacity: 700kg
Automatic Wire Laying Function: Min. spread pitch 0.01mm
Counting Mode: 5-digit counting,
Max. Numbers of Turns Preset: 9999.9
Counting Turn Range: 0 - 9999.9
