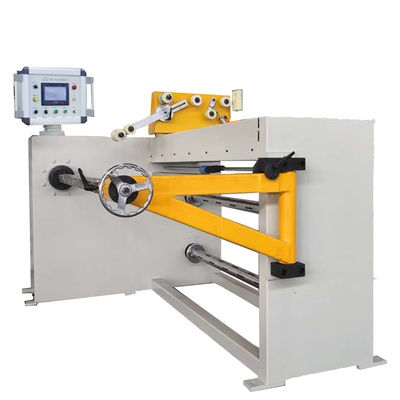

Transverse Length 1200mm Transformer Coil Winding Machine Flat Round Wire Winder

Transverse Length 1200mm Transformer Coil Winding Machine Flat Round Wire Winder

Transverse Length 1200mm Transformer Coil Winding Machine Flat Round Wire Winder
Transverse Length 1200mm Transformer Coil Winding Machine Flat Round Wire Winder Transverse Length 1200mm Transformer Coil Winding Machine Flat Round Wire Winder

Large Image :  Transverse Length 1200mm Transformer Coil Winding Machine Flat Round Wire Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Wire Coil Winding Machine Color: Optinal
Usage: Winding Transformer Wire Coil Control System: PLC
Conductor Material: Copper Or Aluminium Wire Wire Type: Flat Or Round Wire
Motor: 5.5kw Warranty: 1 Year
High Light:

1200mm Transformer Coil Winding Machine

,

1200mm Flat round wire winding machine

,

5.5kw Transformer Coil Winding Machine

Transverse Length 1200mm Flat Round Wire Winder Transformer Coil Winding Machine





Description of transformer coil winding machine ZPX1200



Transformer coil winding machine ZPX1200 is one of heavy duty transformer coil winding machines. The transformer coil winding machine can be used to wind oil type transformer coil with max height 1200mm. The transformer coil winding machine is provided with a wire guide to lay the wire. Servo motor is used to drive the wire guide, which guarantees the precision and the reliability. The transformer coil winding machine features slow starting, smooth running, high automation, full functions, and strong driving force, etc.





Main Components of transformer coil winding machine



1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system





Technical Parameters of transformer coil winding machine



Typical standard specifications of transformer coil winding machine ZPX1200 are shown below, however these can be easily modified as requested.



Center Height: 900mm

Shaft length: 1500mm

Max. Winding Width: 1200mm

Winding Power: 5.5Kw

Winding Speed: 0-80 rpm

Speed Regulation: Variable frequency and stepless speed regulation

Max. Flat Wire Size: 5X12mm

Round Wire Diameter: 0.3 - 5.0mm

Max. Finished Coil OD.: 800mm

Max. Loading Capacity: 700kg

Automatic Wire Laying Function: Min. spread pitch 0.01mm

Counting Mode: 5-digit counting,

Max. Numbers of Turns Preset: 9999.9

Counting Turn Range: 0 - 9999.9
