Description of foil winding machine BRJ300-2

Copper foil winding machine BRJ300-2 is a special conductor foil winder for winding dry transformer coils. The foil winding machine can wind both copper foils and aluminium foils. With TIG welding unit, the copper foil winding machine can weld foil and busbar together. With two foil decoilers and two insulation decoilers, the copper foil winding machine can wind one or two layers of foils and wind one or two layers of insulation paper at once. The copper foil winding machine is provided with PLC control system and HMI, which make the copper foil winding machine be operated easily.

Main components of copper foil winding machine BRJ300-2

1. Main steel welded frame

2. Two foil decoilers

3. Two foil feeder

4. Pressing roller

5. Winding unit

6. PLC based control system

7. Pneumatic system

8. TIG welding unit

Technical parameters of copper foil winding machine BRJ300-2

Typical standard specifications of copper foil winding machine BRJ300-2 are shown below and the copper foil winding machine can also be manufactured as requested.

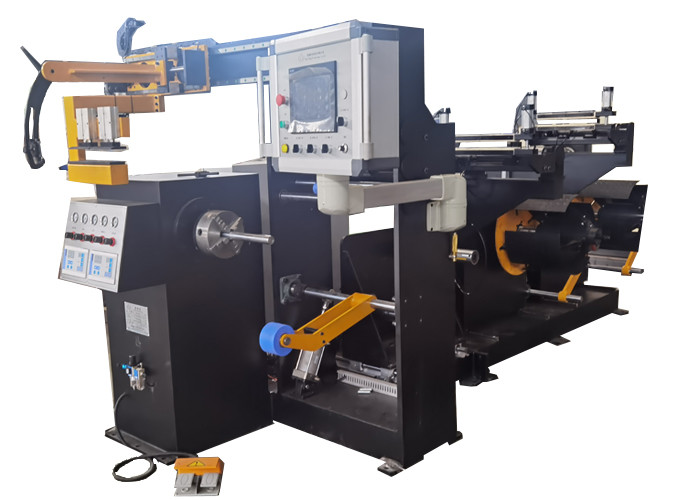

Fig 1: Copper foil winding machine BRJ300-2's front view

Fig 2: Copper foil winding machine BRJ300-2's insulation decoiler
