Automatic HV Coil Winder Transformer Coil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Transformer Coil Winding Machine | Function: | Winding Wire Coil |
|---|---|---|---|
| Wire Material: | Copper Or Aluminium Wire | Wire Type: | Flat Or Round Wire |
| Wire Guide: | 1 Pc | Machine Color: | As Requested |
| Winding Power: | 2.2kw | Winding Speed: | 200rpm |
Automatic HV Coil Winder Transformer Coil Winding Machine
Description of transformer coil winding machine ZPX400
Transformer coil winding machine ZPX400 is a special transformer coil making equipment. The transformer coil winding machine is mainly used to wind copper wire or aluminium wire to make transformer coils or other similar products. With a wire guide driven by a servo motor, this kind of transformer coil winding machine can transverse the wire automatically when winding. The transformer coil winding machine is provided with a touch screen. With HMI, it is very easy to operate the machine.
Quick details of transformer coil winding machine ZPX400
- 2.2kw motor
- Maximum winding speed 200rpm
- PLC control system
- Winding flat or round wire
- pneumatic system
- Foot pedal
Technical Parameters of transformer coil winding machine
Typical standard specifications of transformer coil winding machine ZPX400 are shown below and the machine can also be manufactured as requested.
| Center Height: | 900mm |
| Tailstock: | Triangle supporter |
| Winding Motor Power: | 2.2kw |
| Winding Speed: | 0 ~ 200 rpm |
| Speed Regulation: | stepless speed regulation |
| Control System: | PLC |
| Flat Wire Maximum: | 5x12mm |
| Round Wire Diameter: | Φ0.3 ~ Φ5.0mm |
| Maximum Winding Height: | 400mm |
| Maximum Rotation Diameter: | 600mm |
| Minimum Spread Pitch: | 0.01mm |
| Basic Function: | 5-digit counting |
| Counting Turn Range: | 0 ~ 9999.9 |

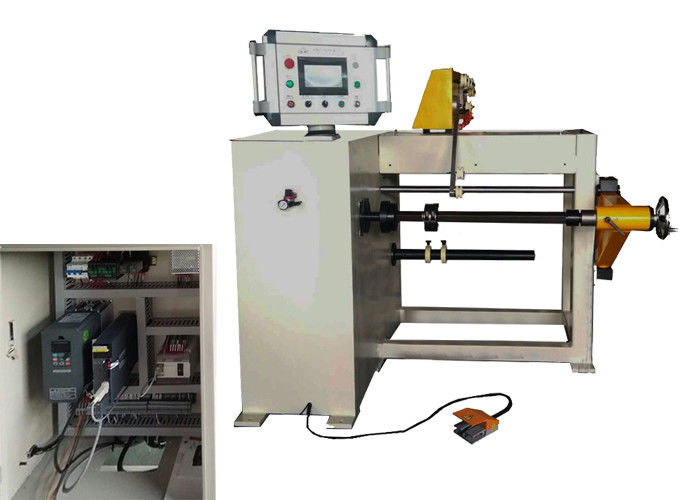

Fig 1: Transformer coil winding machine ZPX400's front view
Fig 2: Transformer coil winding machine ZPX400's motor and its reducer
