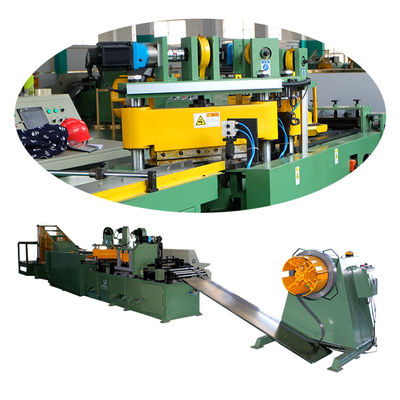

Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw

Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine

Description of silicon steel cutting machine HJX400

Automatic silicon steel cutting machine HJX400 is a special equipment for cutting silicon steel strip to make transformer core. The cutting machine adopts single side positioning technology for the transverse shear line. Servo motor and PLC based control system are adopted, which guarantees the precision of the machine’s actions. Punching and shearing strip are driven by servo motor, the model of silicon steel cutting machine can cut the strip two times and punch the strip one time. A feeding unit is also adopted for the cutting machine.

Main parameters of silicon steel cutting machine HJX400

The standard specifications of HJX400 is shown below, however, the machine can also be manufactured as requested.

Fig 1: Cut to length line HJX400's front view

Fig 2: Cut to length line HJX400's side view
