Automatic Silicon Steel Transformer Core Slitting Machine

Quick detail of core slitting machine ZJX1250

• Decoiler expanding range Ø470 ~ 520mm
• Cutting width 500 ~ 1250 mm
• Cutting thickness 0.15 ~ 0.6mm
• Cutter 6 sets
• Feeding speed 120m/min
• Power 46kw
• One year warranty

Description of core slitting machine ZJX1250

Automatic Transformer Core Silicon Steel Slitting Machine ZJX1250 is a type of production processing equipment that cuts a coiled silicon steel strip into silicon steel strips with a set width, then the strips will be wound into coils. The slitting speed can be adjusted.

Main Components

1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Tensioner

7. Winder

8. Hydraulic station and pneumatic system

9. Electrical control cabinet and console

Main Parameters

Typical standard specifications of ZJX1250 are shown below, however these can be easily modified as requested.

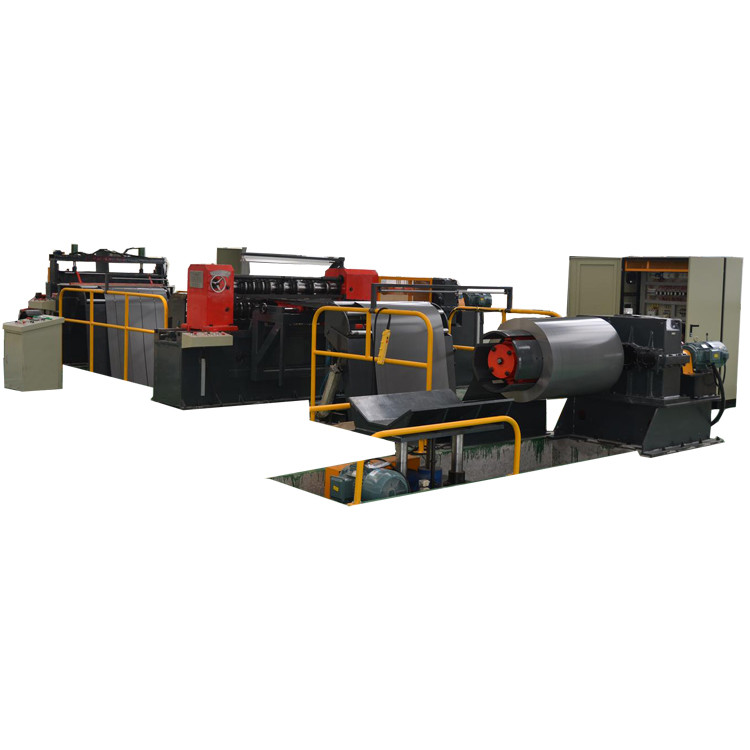

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
