Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip

Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip

Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip
Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip

Large Image :  Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: HJX600-LL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Silicon Steel Cutting Machine Function: Making Cores
Sheet Width: Max. 600mm Sheet Thickness: 0.2~0.35mm
Hole Dia: Φ 10mm~24mm Cutting Speed: 0-200m/min
Warranty: 12 Months Color: According To Requirements
High Light:

Automatic Silicon Steel Cutting Machine

,

200m/min metal cutting machine

,

Silicon Steel Cutting Machine 600mm

Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip





Introduction of silicon steel cutting machine HJX600-LL



Automatic silicon steel cutting machine HJX600-LL is a double shearing and double punching type silicon steel cutting machine, which can be used to shear, punch, and notch iron core sheet to makes fully inclined seam, half inclined seam and straight seam transformer iron core. This kind of core can be used in transformers, reactors and other similar products. The machine can stack the cut strip in order.





Quick details of silicon steel cutting machine HJX600-LL


1.Expanding decoiler

2.Automatic feeding unit
3. Punch unit
5.Cutting unit

6. Outlet platform
7. Depiler and sorting machines

8. Catching material machine

9. Pneumatic system

10. PLC based control system




Technical parameters of silicon steel cutting machine HJX600-LL



Typical standard specifications of HJX600-LL are shown below, however this can be modified in as requested.

Sheet Width Tolerance: ≤±0.1mm
Burr: ≤0.03mm
S Degree Tolerance: single direction less than 0.1mm in 1000mm
Sheet Wave Degree: ≤15mm/1000mm( span more than 1000mm, height less than 15mm)
Sheet Thickness: 0.2~0.35mm
Sheet Width: 60~600mm
Sheet Length: 350~9999mm
Hole Punched Dia. 10mm~24mm
Hole’s Position: can be bidirectional offset along the center line
V-type Punching Eccentricity ±30mm
Cutting Speed: 0~200m/min
Power: 18Kw



Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip 0

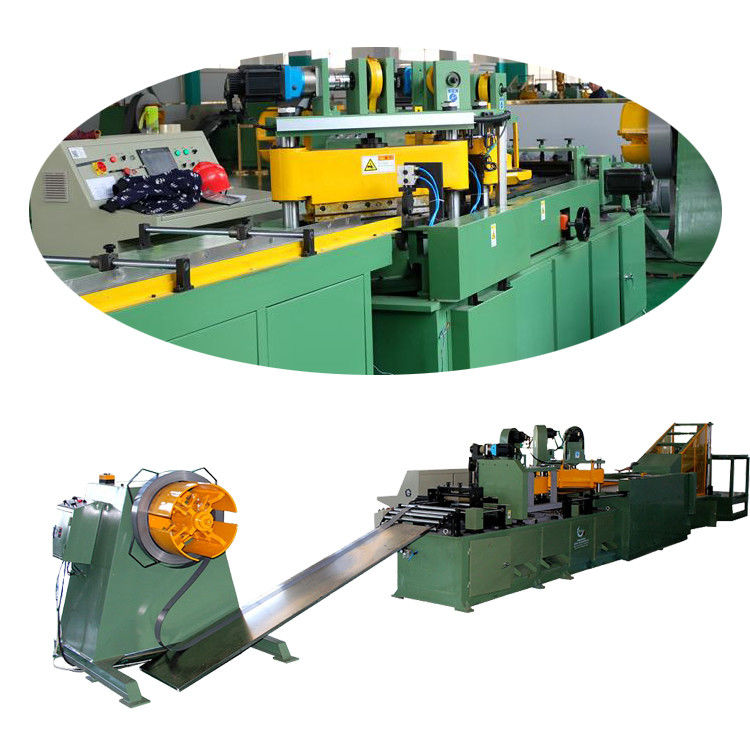

Fig 1: Silicon steel cutting machine HJX600-LL's full view



Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip 1

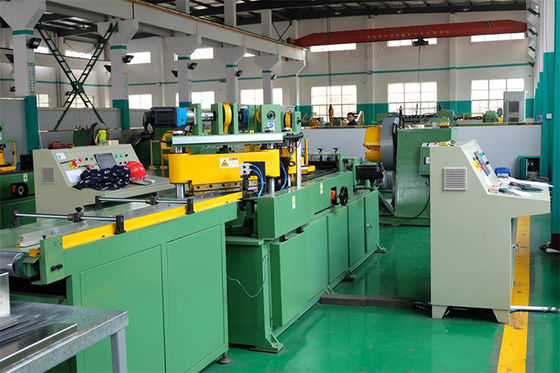

Fig 2: Silicon steel cutting machine HJX600-LL's side view



Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip 2Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip 3Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip 4Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip 5Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip 6Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip 7Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip 8Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip 9Automatic Silicon Steel Cutting Machine Cut To Length Line 600mm Width Strip 10
