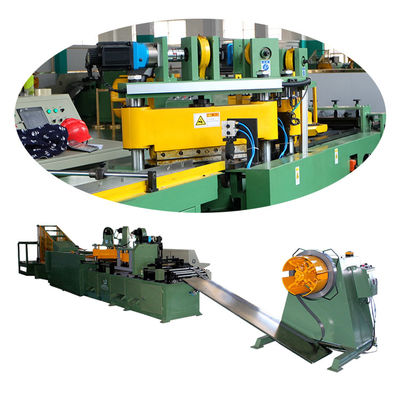

Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw

Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw

Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw
Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw

Large Image :  Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: HJX400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Silicon Steel Cutting Machine Function: Making Cores
Strip Width: 40-400mm Strip Thickness: 0.2-0.35mm
Cutting Speed: 120m/min Cutting Burr: Less Than 0.02mm
Power: 12.5kw Warranty: 12 Months
High Light:

400mm Silicon Steel Cutting Machine

,

0.35mm auto cutting machine

,

Silicon Steel Cutting Machine 12.5kw

Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine





Description of silicon steel cutting machine HJX400



Automatic silicon steel cutting machine HJX400 is a special equipment for cutting silicon steel strip to make transformer core. The cutting machine adopts single side positioning technology for the transverse shear line. Servo motor and PLC based control system are adopted, which guarantees the precision of the machine’s actions. Punching and shearing strip are driven by servo motor, the model of silicon steel cutting machine can cut the strip two times and punch the strip one time. A feeding unit is also adopted for the cutting machine.





Main parameters of silicon steel cutting machine HJX400



The standard specifications of HJX400 is shown below, however, the machine can also be manufactured as requested.



Technical specifications HJX400
Silicon steel strip thickness 0.2-0.35 mm
Strip width 40-400 mm
Cutting length 350-9999 mm
Cutting Speed 120 m/min
Cutting angle tolerance ±0.025°
Cutting length tolerance ±0.1 mm
Cutting burring ≤0.02 mm
Total power 12.5 kw



Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw 0

Fig 1: Cut to length line HJX400's front view



Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw 1

Fig 2: Cut to length line HJX400's side view



Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw 2Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw 3Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw 4Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw 5Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw 6Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw 7Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw 8Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw 9Automatic 400mm Width Strip Cut To Length Line Silicon Steel Cutting Machine 12.5kw 10
