Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore

Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore

Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore
Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore

Large Image :  Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: UCM400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Unicore Cutting Machine Decoiler Number: 1 Pc
Machine Color: Customized Machine Warranty: 12 Months
Working Air Pressure: 1 Mpa Bending Angle: 45°
High Light:

CE Silicon Steel Cutting Machine

,

Automatic Unicore Cutting Machine

,

C Shaped Silicon Steel Cutting Machine

Automatic C Shaped Core Making Unicore Cutting Machine





Description of unicore cutting machine UCM400



Unicore cutting machine UCM400 is a professional machine for cutting C shaped core for making transformers. The kind of core cut by unicore cutting machine can be used in oil type transformer, dry type transformer, and traction transformer, etc. The unicore cutting machine can regulate the cutting speed regulation. The unicore cutting machine is provided with touch screen, which can be used to input parameters for the cutting machine.





Quick details of unicore cutting machine UCM400



  • The cut core can be used to make oil, dry, traction transformer
  • Two heads decoilers
  • Single set silicon steel sheet width ≤400mm
  • Double sets silicon steel sheet width ≤190mm
  • Working air pressure 1 Mpa
  • 12 months warranty period



Main Components of unicore cutting machine UCM400

  • Cylinder
  • Bearings
  • Linear guide,
  • Linear bearing etc.
  • Decoilers
  • Touch screen



Main parameters of unicore cutting machine UCM400



Typical standard specifications of UCM400 are shown below, however the machine can also be manufactured as requested.



1 Applicable Transformer High Voltage: HV: 10~35kV
2 Applicable Transformer Capacity: 30KVA~3150KVA
3 Single Set Silicon Steel Sheet Width: ≤400mm
4 Double Sets Silicon Steel Sheet Width: ≤190mm
5 Air Pressure: 1Mp
6 Bending Angle: 45°



Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 0

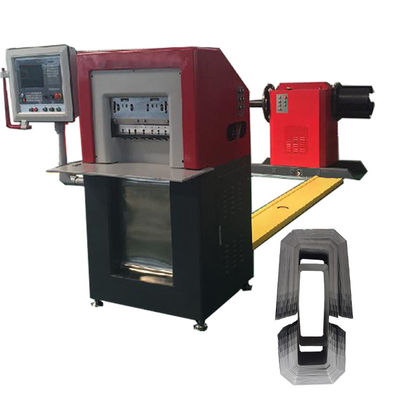

Fig 1: Unicore cutting machine UCM400's full view



Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 1

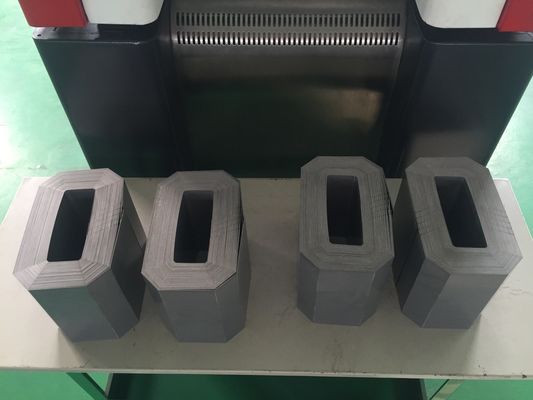

Fig 2: Unicore cutting machine UCM400's cut product



Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 2Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 3Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 4

Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 5

Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 6Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 7Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 8

Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 9Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 10Automatic Silicon Steel Cutting Machine Transformer C Shaped Core Making Unicore 11
