400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core

400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core

400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core
400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core

Large Image :  400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: UCM400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Unicore Cutting Machine Function: Making Gap Core
Steel Sheet Width: 40-400mm Steel Sheet Thickness: 0.2-0.35mm
Decoiler Capacity: 1000kg Air Source: 0.8Mpa
Machine Color: As Requested Warranty: 12 Months
High Light:

400mm Silicon Steel Cutting Machine

,

0.8Mpa transformer core machine

,

0.35mm Silicon Steel Cutting Machine

Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core





Description of silicon steel cutting machine UCM400



The silicon cutting machine unicore cutter UCM400 is designed to make gap cores for single phase or three phase distribution transformers and instrument transformers with 500KVA ~ 5000KVA. The machine is controlled by PLC control system. The silicon steel cutting machine features high precision, high speed, compact structure and so on.





Quick details of silicon steel cutting machine UCM400

  • Unicore cutting machine
  • Two heads decoilers
  • Single set silicon steel sheet width ≤400mm
  • Double sets silicon steel sheet width ≤190mm
  • Working air pressure 0.8 Mpa
  • 12 months warranty period



Main parameters of silicon steel cutting machine UCM400



Typical standard specifications of UCM400 are shown below, however these can be easily modified as requested.



1 Applicable Transformer High Voltage: HV: 10~35kV
2 Applicable Transformer Capacity: 30KVA~3150KVA
3 Single Set Silicon Steel Sheet Width: ≤400mm
4 Double Sets Silicon Steel Sheet Width: ≤190mm
5 Air Pressure: 0.8Mp
6 Bending Angle: 45°
7 Bending Speed: 0.5s
8 Cutting Speed: 0.5s
9 Silicon steel thickness: 0.2~0.35mm
10 Decoiler Capacity: 1000kgs



400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 0

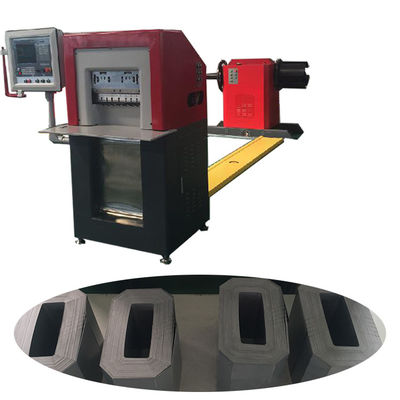

Fig 1: Unicore cutting machine UCM400's full view



400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 1

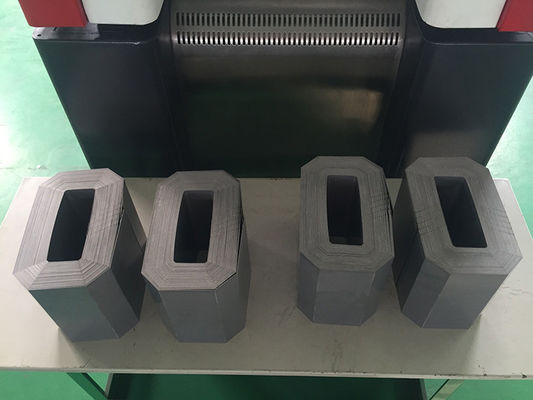

Fig 2:Unicore cutting machine UCM400's cut product



400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 2400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 3400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 4400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 5400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 6400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 7400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 8400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 9400mm Silicon Steel Cutting Machine Unicore Cutter Making Transformer Reactor Core 10
