| Machine Name: | Silicon Steel Cutting Machine | Function: | Making Core |
|---|---|---|---|
| Sheet Width: | 40-400mm | Sheet Thickness: | 0.2-0.35mm |
| Decoiler Capacity: | 1000kg | Air Source: | 0.8Mpa |
| Color: | As Requested | Warranty: | 12 Months |
| High Light: | Automatic Silicon Steel Cutting Machine,400mm automatic cutting machine,Silicon Steel Cutting Machine 3D Unicore |
||
Automatic Silicon Steel Cutting Machine Making 3D Unicore Gap Wound Cores
Description of silicon steel cutting machine UCM400
The silicon cutting machine UCM400 is designed for making gap wound cores. This kind of cores can be used in transformers and other similar products. With a HMI, the parameters can be set through the screen. The silicon steel cutting machine can feed both single strip and double strips, which improves the production efficiency.
Quick details of silicon steel cutting machine UCM400
Main parameters of silicon steel cutting machine UCM400
Typical standard specifications of UCM400 are shown below, however these can be easily modified as requested.
| 1 | Applicable Transformer High Voltage: | HV: 10～35kV |
| 2 | Applicable Transformer Capacity: | 30KVA～3150KVA |
| 3 | Single silicon Steel Strip Width: | 400mm, maximum |
| 4 | Double Silicon Steel Strip Width: | 190mm, maximum |
| 5 | Air Source: | 0.8Mp |
| 6 | Bending Angle: | 45° |
| 7 | Bending Speed: | 0.5s |
| 8 | Cutting Speed: | 0.5s |
| 9 | Silicon steel thickness: | 0.2～0.35mm |
| 10 | Decoiler Capacity: | 1000kgs |

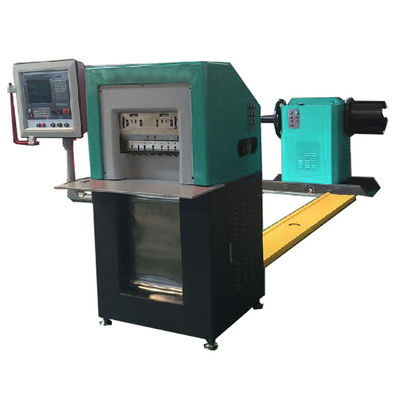

Fig 1: Unicore cutting machine UCM400's full view
Fig 2: Unicore cutting machine UCM400's cut product
