1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine

1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine

1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine
1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine

Large Image :  1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: UCM400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Unicore Cutting Machine Decoiler: Single Head
Machine Color: Optional Warranty Period: 12 Months
Air Pressure: 1 Mpa Bending Angle: 45°
Decoiler Capacity: 1000kg Decoiler Expanding: Φ450mm ~ Φ510mm
High Light:

Automatic Silicon Steel Cutting Machine

,

1 Mpa Silicon Steel Cutting Machine

,

Unicore Silicon Steel Cutting Machine

Automatic Silicon Steel Cutting Machine Unicore Cutting Machine





Introduction of silicon steel cutting machine UCM400



Silicon steel cutting machine UCM400 is one kind of special cutting machines, which is mainly used to cut silicon steel to make rectangle open core for transformers and other similar products. This cutting machine can cut one strip with maximum width 400mm or two strips with maximum width 190mm at once. The finished cut core can be used in oil transformers, dry transformers and traction transformers with high voltage 10~35kV and capacity 30KVA~3150KVA. The blades of the cutting machine are made of cemented carbide.The coil dereeler adopts hydraulic expanding for putting and fixing the silicon steel roll easily. With a touch screen, it is very easy to operate the machine.





Main parts of silicon steel cutting machine UCM400



1. Main machine

2. Single head coil dereeler

3. Floor support plate

4. One set of cutter





Main parameters of silicon steel cutting machine UCM400



Typical standard specifications of cutting machine UCM400 are shown below and the cutting machine can also be manufactured as requested.



Silicon steel sheet width Maximum 400mm
Silicon steel sheet thickness 0.20 ~ 0.35mm
Cutting speed adjustable
Bending angle 45°
Coil dereeler Hydraulic expanding
Coil dereeler capacity 1000kg
Coil dereeler expanding range Φ450mm ~ Φ510mm
Silicon steel coil inner diameter Φ500mm
Silicon steel coil outer diameter Φ1000mm maximum
Pressure air source 1Mp
Power Supply 3-phase 380V 50Hz
Power 6kw
Machine dimension(LxWxH): 7000×1800×1500mm


1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine 0

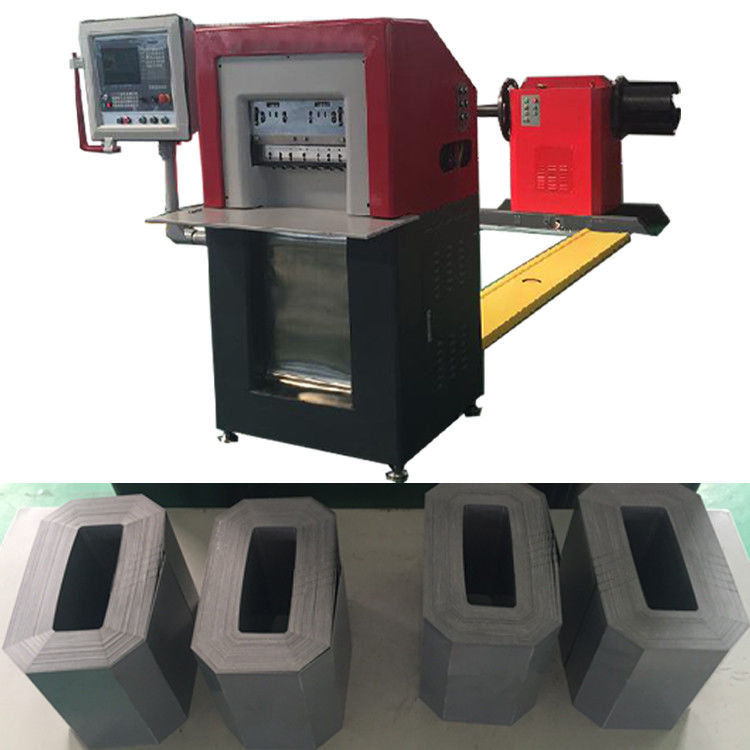

Fig 1: Silicon steel cutting machine UCM400's full view

1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine 1
Fig 2: Silicon steel cutting machine UCM400's cut product

1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine 2
1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine 3
1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine 4
1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine 5
1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine 6
1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine 7
1 Mpa Automatic Silicon Steel Cutting Machine Unicore Cutting Machine 8
