Introduction of transformer foil winding machine BRJ1600-2

Transformer foil winding machine BRJ1600-2 is one of heavy duty foil winding machine, which can be used to wind copper foil and aluminium foil with maximum width 1600mm. With 30kw winding motor, the transformer foil winding machine can handle one or two layers of copper or aluminium foil and one or two layers of insulation paper. With photoelectric sensors, the transformer foil winding machine can rectify the deviation of the foil automatically when the foil is wound. One color touch screen is also adopted in the transformer foil winding machine, which make the machine be operated easily.

Quick details of transformer foil winding machine BRJ1600-2

• Winding speed 16rpm
• Smoothly running
• PLC based control system
• Full automation
• 30kw winding motor
• Deburring unit
• Cutting unit
• Easy operation

Main parameters of transformer foil winding machine BRJ1600-2

The following is the standard specifications of transformer foil winding machine BRJ1600-2, however, these specifications can be modified as requested.

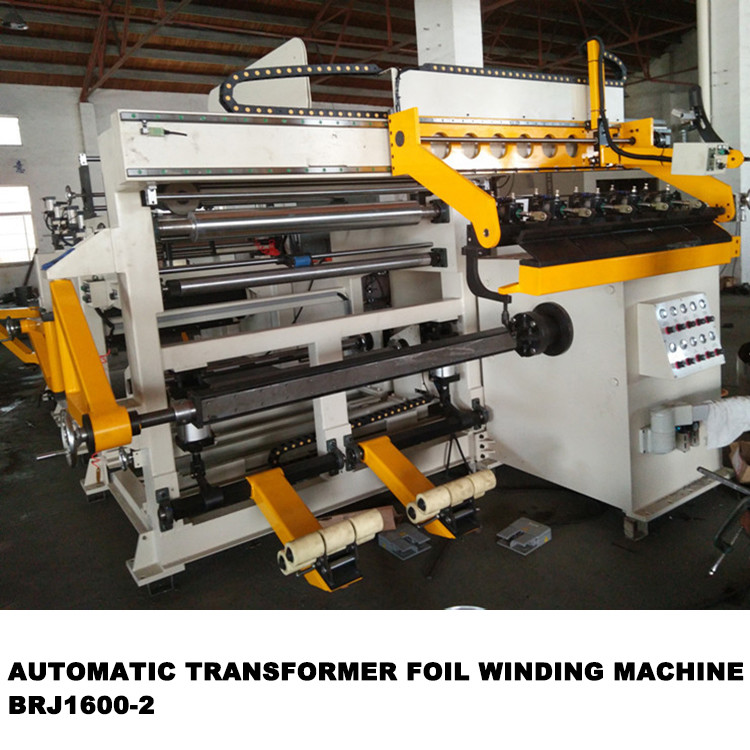

Fig 1: Transfomer foil winding machine BRJ1600-2's side view

Fig 2: Transfomer foil winding machine BRJ1600-2's back view
