| Product Name: | Tranformer Foil Winding Machine | Usage: | Winding Transformer Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Winding Speed: | 0 ~ 16rpm | Motor Power: | 30kw |
| Color: | Optional | Warranty: | 12 Months |
| High Light: | Cast Resin Automatic Coil Winding Machine,Automatic Transformer Winding Machine Heavy Duty,Cast Resin Automatic Transformer Winding Machine |
||
Heavy Duty Automatic Cast Resin Transformer Foil Winding Machine Máquina de bobinado de láminas
Introduction of transformer foil winding machine BRJ1600-2
Transformer foil winding machine BRJ1600-2 is one of heavy duty foil winding machine, which can be used to wind copper foil and aluminium foil with maximum width 1600mm. With 30kw winding motor, the transformer foil winding machine can handle one or two layers of copper or aluminium foil and one or two layers of insulation paper. With photoelectric sensors, the transformer foil winding machine can rectify the deviation of the foil automatically when the foil is wound. One color touch screen is also adopted in the transformer foil winding machine, which make the machine be operated easily.
Quick details of transformer foil winding machine BRJ1600-2
Main parameters of transformer foil winding machine BRJ1600-2
The following is the standard specifications of transformer foil winding machine BRJ1600-2, however, these specifications can be modified as requested.
| Foil Width: | 350 ~ 1,600mm |
| Finished Coil OD.: | Φ1,000mm, maximum |
| AL Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Conductor Material OD.: | Φ1,000mm, maximum |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Insulation Decoiler Number: | 2 pcs |
| Winding Power: | 30kw |
| Max. Winding Speed: | 16rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Foil Deburring Unit: | 2 sets |
| Cleaning Foil Unit: | 2 sets |
| Edge Alignment System: | Photoelectric sensing |
| Counting Turns Range: | 0 - 9999.9 |

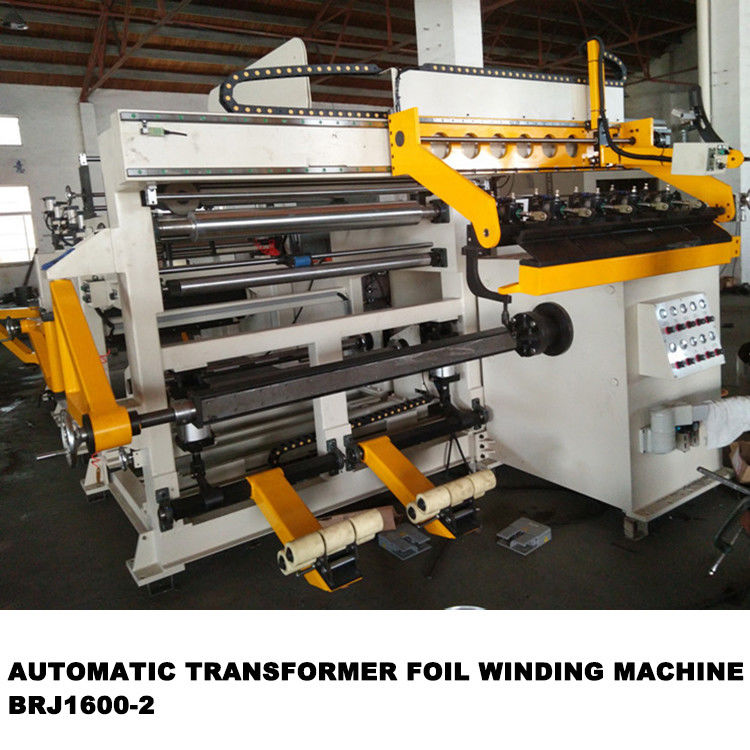

Fig 1: Transfomer foil winding machine BRJ1600-2's side view
Fig 2: Transfomer foil winding machine BRJ1600-2's back view
