Description of transformer foil winding machine BRJ200

Automatic transformer foil winding machine BRJ200 is a special foil winding machine for making transformer coil, i.e. Bobina de transformador, and other similar products. The transformer foil winding machine can wind one layer of copper or aluminium foil with maximum width 200mm and one or two layers of insulation paper. The kind of transformer foil winding machine is provided with PLC control system. With PLC control system, the transformer foil winding machine can run automatically as per the parameters preset. The transformer foil winding machine features slow staring, smooth running, high automation, full function, etc. It is very easy to operate the foil winding machine.

Main components of transformer foil winding machine BRJ200

1. Main frame

2. Foil decoiler

3. Pressing roller

4. Winding unit

5. Insulation decoiler

6. Edge alignment system

7. Automatic cold welding unit

8. Pneumatic unit

9. Electrical control system

Technical parameters of transformer foil winding machine BRJ200

Typical standard specifications of transformer foil winding machine BRJ200 are shown below, however these can be modified as requested.

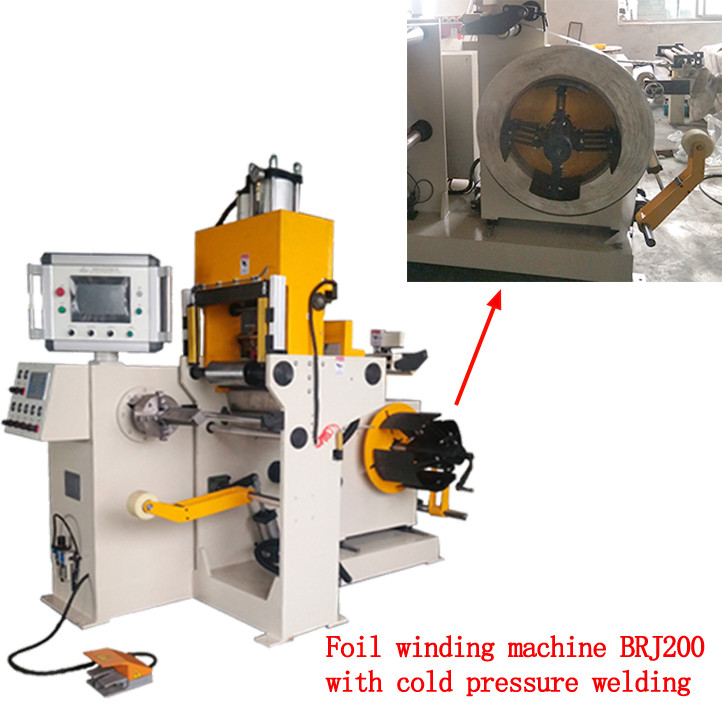

Fig 1: Transfomer foil winding machine BRJ200's front view

Fig 2: Transformer foil winding machine BRJ200's cold welding unit
