Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed

Copper Foil Winding Machine: 600mm Max Width, TIG Welding, 0~26rpm Speed

Description of copper foil winding machine BRJ600-2

Copper foil winding machine BRJ600-2 is one kind of automatic transformer coil making equipment with both copper foil and aluminium foil. The copper foil winding machine is mainly used to make cast resin transformer coils or other similar products. The copper foil winding machine is with two foil decoilers and two insulation paper decoilers, which make the copper foil winding machine wind one or two layers of foil and one or two layers of insulation paper at once. The copper foil winding machine can wind the foil with maximum width 600mm. With TIG welding unit, the foil winding machine can weld foil and bus bar together. With a touch screen and PLC control system, it is very easy to operate the foil winding machine. The foil winding machine features slow starting, smooth running, big torque and so on.

Quick details of copper foil winding machine BRJ600-2

• Maximum 600mm foil width
• Winding both copper foil and aluminium foil
• Foil conductor ID 500mm, Maximum OD 1000mm
• TIG welding
• Pressing roller
• Customized color

Technical parameters of copper foil winding machine BRJ600-2

Typical standard specifications of copper foil winding machine BRJ600-2 are shown below, however, the machine can be manufactured as requested.

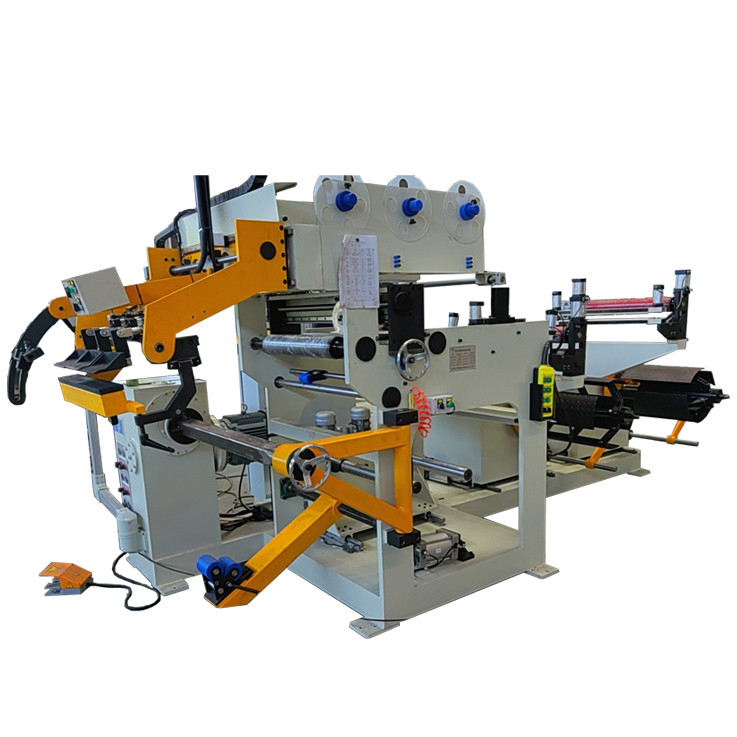

Fig 1: Copper foil winding machine BRJ600-2's front view

Fig 2: Copper foil winding machine BRJ600-2's insulation decoiler
