Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed

Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed

Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed
Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed

Large Image :  Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: BRJ600-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Transformer Foil Winding Machine Function: Winding Foil Coil
Cu Foil Thickness: 0.2 ~ 2.0mm Al Foil Thickness: 0.3 ~ 3.0mm
Control System: PLC Display System: Touch Screen
Max. Width: 600mm Speed: 0 ~ 26rpm
Power: 11kw Warranty: 1 Year
High Light:

Copper Foil Winding Machine 600mm Width

,

TIG Welding Automatic Coil Winding Machine

,

Copper Foil Winding Machine 600mm

Copper Foil Winding Machine: 600mm Max Width, TIG Welding, 0~26rpm Speed





Description of copper foil winding machine BRJ600-2



Copper foil winding machine BRJ600-2 is one kind of automatic transformer coil making equipment with both copper foil and aluminium foil. The copper foil winding machine is mainly used to make cast resin transformer coils or other similar products. The copper foil winding machine is with two foil decoilers and two insulation paper decoilers, which make the copper foil winding machine wind one or two layers of foil and one or two layers of insulation paper at once. The copper foil winding machine can wind the foil with maximum width 600mm. With TIG welding unit, the foil winding machine can weld foil and bus bar together. With a touch screen and PLC control system, it is very easy to operate the foil winding machine. The foil winding machine features slow starting, smooth running, big torque and so on.





Quick details of copper foil winding machine BRJ600-2

  • Maximum 600mm foil width
  • Winding both copper foil and aluminium foil
  • Foil conductor ID 500mm, Maximum OD 1000mm
  • TIG welding
  • Pressing roller
  • Customized color



Technical parameters of copper foil winding machine BRJ600-2



Typical standard specifications of copper foil winding machine BRJ600-2 are shown below, however, the machine can be manufactured as requested.

Foil width: 200 ~ 600mm
Maximum Finished Coil OD: 800mm
Finished Coil Shape: oval, circle and rectangular,etc.
Conductor Foil Material OD.: 1,000mm, maximum
Conductor Foil Material ID.: 500mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 650mm
Winding Mandrel Size: 80×80×950 mm
Power: 11kw
Maximum Winding Speed: 26rpm
Welding Mode: TIG
Insulation Decoiler Number: 2 pcs
Max. Insulation Material Width: 650mm
Insulation Decoiler Shaft: Expandable (pneumatic open/close action)
End-fill Strip Feeder: 6 pcs
Edge Alignment System: Photoelectric sensing
Control System: PLC
User Interface: 10inch (254mm) touch screen
Counting Turns Range: 0 ~ 9999.9



Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed 0

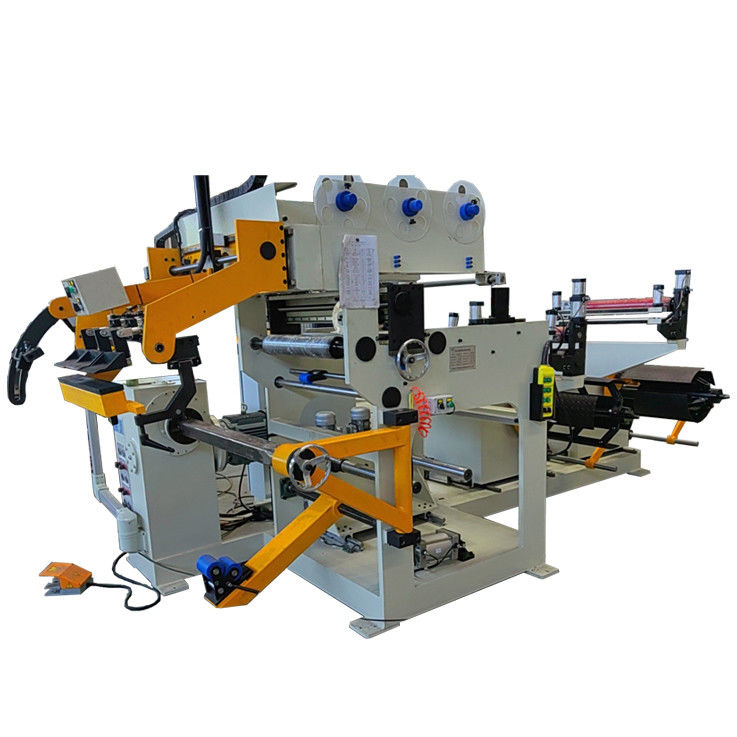

Fig 1: Copper foil winding machine BRJ600-2's front view



Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed 1

Fig 2: Copper foil winding machine BRJ600-2's insulation decoiler



Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed 2Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed 3Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed 4Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed 5Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed 6Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed 7Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed 8Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed 9Automatic Copper Foil Winding Machine 600mm Width TIG Welding 0 - 16rpm Speed 10
