Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank

Automatic Corrugated Fin Forming Machine Producing Transformer Oil Tank


Quick details of corrugated fin forming machine BWX1600-400

• Corrugated fin molding machine motor power 32kw
• Steel plate width from 300mm to 1600mm
• Steel plate thickness from 0.5mm to 1.75mm
• One year warranty


Description of corrugated fin forming machine BWX1600-400


Automatic corrugated fin forming machine BWX1600-400 is a professional equipment for manufacturing corrugated fin. The corrugated fins can be used to make transformer oil tank. The full set of oil tank making equipment includes corrugated fin molding machine, automatic corrugated fin welding machine, hydraulic decoiler and industrial oil cooler.



Main components

1. Corrugated fin molding machine

2. Fin welding machine

3. Decoiler

4. Oil cooler

Main parameters of corrugated fin forming machine BWX1600-400


Typical standard specifications of BWX1600-400 are shown below, however these can be easily modified as requested.

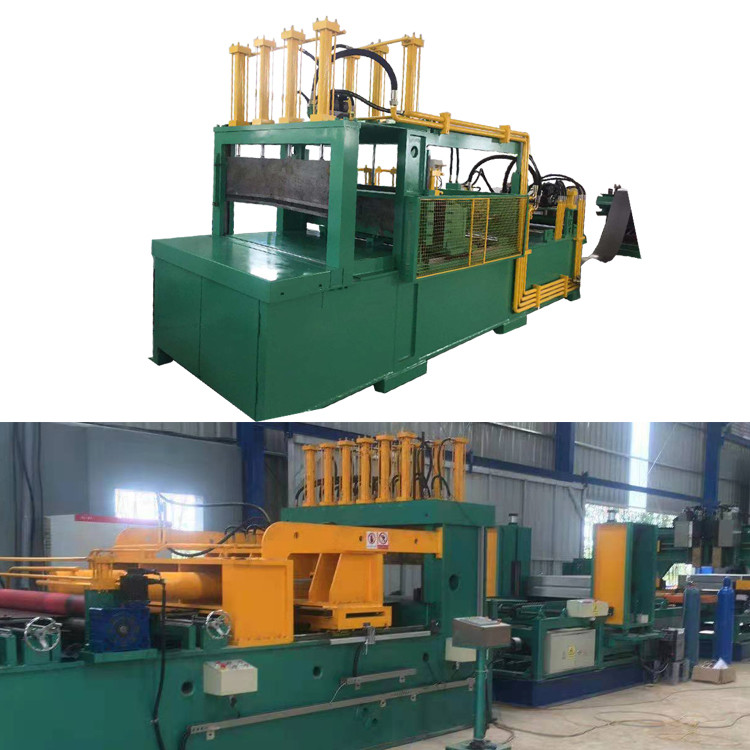

Fig 1: Corrugated fin forming machine BWX1600-400's forming unit


Fig 2: Corrugated fin forming machine BWX1600-400's welding machine
