Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet

Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet

Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet
Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet

Large Image :  Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BWX1600-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 60 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Corrugated Fin Making Machine Steel Plate Width: 300 ~ 1600mm
Corrugated Fin Height: 50 ~ 400mm Corrugated Fin Pitch: 45 ~ 60mm
Corrugated Fin Length: ≤2000mm Color: Customized
Oil Groove: 4mm Welding Machine: 2 Sets
High Light:

400mm Corrugated Fin Forming Machine

,

corrugated tank making machine 1600mm

,

2000mm Corrugated Fin Forming Machine

Automatic One Decoiler Feeding Sheet Transformer Corrugated Fin Forming Machine





Quick detail of corrugated fin forming machine BWX1600-400



  • Corrugated fin molding machine 32kw
  • Steel plate width 300 ~ 1600mm
  • Steel plate thickness 0.5 ~ 1.75mm
  • One year warranty





Description of corrugated fin forming machine BWX1600-400



Automatic transformer corrugated fin forming machine BWX1600-400 is a special equipment for manufacturing corrugated fins. The full set of equipment includes corrugated fin forming machine, automatic corrugated fin welding machine, hydraulic decoiler and industrial oil cooler.





Main components of corrugated fin forming machine BWX1600-400



1. Corrugated fin forming machine

2. Welding machine

3. Decoiler

4. Oil cooler





Main parameters of corrugated fin forming machine BWX1600-400



Typical standard specifications of corrugated fin forming machine BWX1600-400 are shown below, however the corrugated fin forming machine can also be manufactured as requested.



Steel Plate Width: 300 ~ 1600mm
Steel Plate Thickness: 0.5 ~ 1.75mm
Corrugated Fin Height: 50 ~ 400mm
Corrugated Fin Pitch 45 ~ 60mm
Corrugated Fin Length ≤2000mm
Fin Gap(oil groove): >4mm
Corrugated Fin Front Section Length: ≥30mm
Corrugated Fin Back Section Length: ≥30mm
Folding Height: 15 ~ 300mm
Corrugation Fin Sets: 1 ~ 4 sets
Molding speed: 3 ~ 4 fins/min
Total Weight: 16000KG
Floor Space: 9m x 7m
Total Motor Power: 32kw
Voltage: 3-phase 380V 50Hz



Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet 0

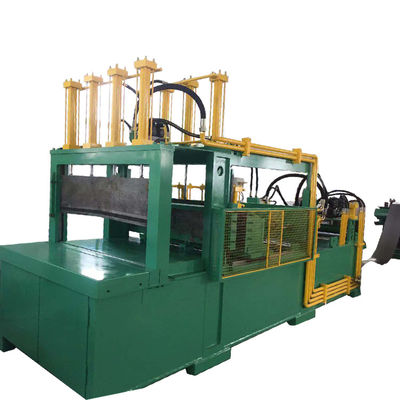

Fig 1: Corrugated fin forming machine BWX1600-400's forming unit



Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet 1

Fig 2: Corrugated fin forming machine BWX1600-400's welding machine



Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet 2Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet 3Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet 4

Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet 5Transformer Corrugated Fin Forming Machine Automatic One Decoiler Feeding Sheet 6
