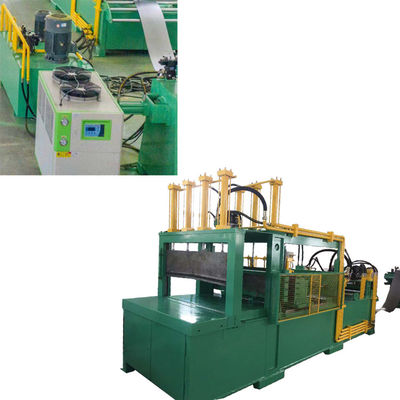

Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip

Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip

Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip
Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip

Large Image :  Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BWX1600-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Corrugated Fin Forming Machine Sheet Width: 300 ~ 1600mm
Fin Height: 50 ~ 400mm Fin Pitch: ≥40mm
Feeding Speed: 4 Fins/min Color: As Requested
Usage: Making Transformer Oil Tank Warranty Period: 1 Year
High Light:

Transformer Corrugated Fin Forming Machine

,

fin making machine 1600mm

,

Corrugated Fin Forming Machine 1600mm

Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip





Description of corrugated fin forming machine BWX1600-400



Automatic Corrugated Fin forming machine BWX1600-400 is a special equipment for manufacturing transformer corrugated oil tank. The full set of equipment includes corrugated fin molding machine, automatic corrugated fin welding machine, hydraulic decoiler and industrial oil cooler. The Corrugated Fin making machine can be used make the fins with 1600mm width and 400mm height.





Quick details of Corrugated Fin forming machine BWX1600-400

  • 32kw fin forming machine
  • Steel plate width 300 ~ 1600mm
  • Steel plate thickness 0.5 ~ 1.75mm
  • One year warranty



Main parameters of Corrugated Fin forming machine BWX1600-400



Typical standard specifications of BWX1600-400 are shown below, however these can be easily modified as requested.



Steel Plate Width: 300 ~ 1600mm
Steel Plate Thickness: 0.5 ~ 1.75mm
Corrugated Fin Height: 50 ~ 400mm
Corrugated Fin Pitch ≥42mm
Corrugated Fin Length ≤2000mm
Fin Gap(oil groove): >4mm
Corrugated Fin Front Section Length: ≥30mm
Corrugated Fin Back Section Length: ≥30mm
Folding Height: 15 ~ 300mm
Corrugation Fin Sets: 1 ~ 4 sets
Molding speed: 3 ~ 4 fins/min
Total Weight: 16000KG
Floor Space: 9m x 7m
Total Motor Power: 32kw



Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip 0

Fig 1: Corrugated fin forming machine BWX1600-400's forming unit

Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip 1

Fig 2: Corrugated fin forming machine BWX1600-400's welding machine



Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip 2

Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip 3

Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip 4Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip 5Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip 6Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip 7Automatic Transformer Corrugated Fin Forming Machine 1600mm Width Strip 8
