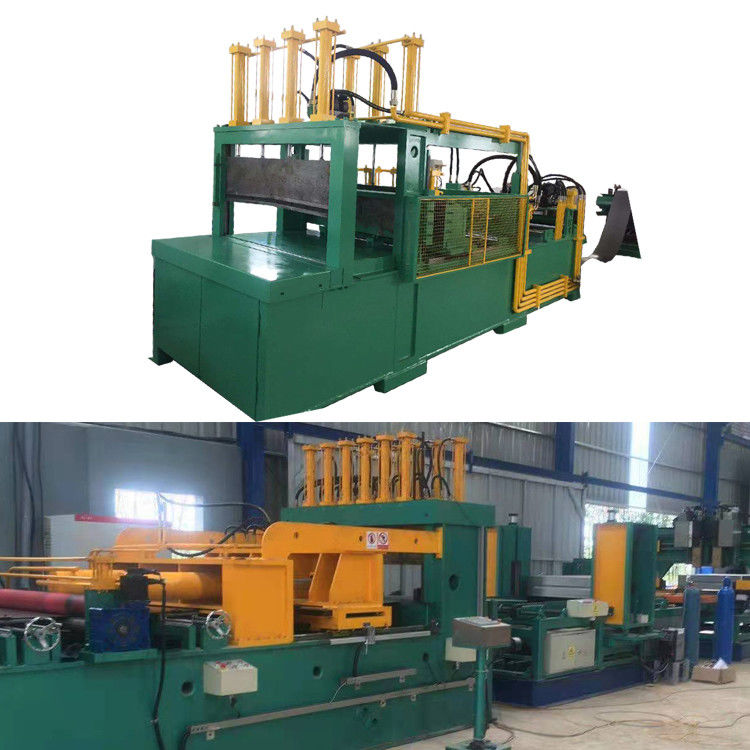

Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank

Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank

Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank
Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank

Large Image :  Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BWX1600-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Corrugated Fin Forming Machine Plate Width: 300 ~ 1600mm
Corrugated Fin Height: 50 ~ 400mm Fin Pitch: ≥42mm
Corrugated Fin Length: ≤2000mm Machine Color: Customized
Warranty: 12 Months Speed: 4 Fins/min
High Light:

Corrugated fin making machine

,

1600mm transformer oil tank making machine

,

Automatic fin making machine

Automatic Corrugated Fin Forming Machine Producing Transformer Oil Tank


Quick details of corrugated fin forming machine BWX1600-400

  • Corrugated fin molding machine motor power 32kw
  • Steel plate width from 300mm to 1600mm
  • Steel plate thickness from 0.5mm to 1.75mm
  • One year warranty


Description of corrugated fin forming machine BWX1600-400


Automatic corrugated fin forming machine BWX1600-400 is a professional equipment for manufacturing corrugated fin. The corrugated fins can be used to make transformer oil tank. The full set of oil tank making equipment includes corrugated fin molding machine, automatic corrugated fin welding machine, hydraulic decoiler and industrial oil cooler.



Main components



1. Corrugated fin molding machine

2. Fin welding machine

3. Decoiler

4. Oil cooler





Main parameters of corrugated fin forming machine BWX1600-400


Typical standard specifications of BWX1600-400 are shown below, however these can be easily modified as requested.



Steel Plate Width:300 ~ 1600mm
Steel Plate Thickness:0.5 ~ 1.75mm
Corrugated Fin Height:50 ~ 400mm
Corrugated Fin Pitch≥42mm
Corrugated Fin Length≤2000mm
Fin Gap(oil groove):>4mm
Corrugated Fin Front Section Length:≥30mm
Corrugated Fin Back Section Length:≥30mm
Folding Height:15 ~ 300mm
Corrugation Fin Sets:1 ~ 4 sets
Molding speed:3 ~ 4 fins/min
Total Weight:16000KG
Floor Space:9m x 7m
Motor Power:32kw


Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank 0
Fig 1: Corrugated fin forming machine BWX1600-400's forming unit

Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank 1
Fig 2: Corrugated fin forming machine BWX1600-400's welding machine
Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank 2Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank 3Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank 4Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank 5Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank 6Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank 7Automatic Corrugated Fin Making Machine Producing Transformer Oil Tank 8
