Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank

Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank

Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank
Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank

Large Image :  Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BWX1300-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Transformer Oil Tank Making Machine Sheet Width: 300 ~ 1300mm
Fin Height: 50 ~ 400mm Fin Pitch: ≥40mm
Working Speed: 4 Fins/min Color: Customized
Function: Making Transformer Oil Tank Warranty Period: 12 Months
High Light:

1300mm transformer oil tank making machine

,

400mm transformer oil tank making machine

,

400mm fin forming machine

Automatic Corrugated Fin Forming Machine Making transformer corrugated tank





Description of corrugated fin forming machine BWX1300-400



Corrugated fin forming machine BWX1300-400 is mainly used to make fin radiator for transformer corrugated tank. The full set of equipment includes corrugated fin forming machine, automatic corrugated fin welding machine, Hydraulic decoiler and industrial oil cooler. The corrugated fin forming machine is used to make corrugated fin. With PLC control system, the machine can be used to fold and form corrugated fins automatically, cut the steel strip automatically, and so on. It features easy to operate, stable performance, full automation, high safety, and so on.





Quick details of corrugated fin forming machine BWX1300-400:



Steel plate width max. 1300mm

Steel plate thickness 0.5 ~ 1.75mm

Fin height 100- 400mm

Fin gap >4mm





Main parameters of corrugated fin forming machine



Typical standard specifications of BWX1300-400 are shown below, however these can be easily modified as requested.



Machine type BWX1300-400
Fin specifications Suitable material Carbon steel
Steel thickness 0.5 ~ 1.75mm
Forming width Max. 1300mm
Fin height 50-400mm
Pitch 43-80mm
Fin gap >4mm
Hydraulic power 22KW
Oil pump 65L/min
Oil tank volume About 350L
Cooling system Cooling water circulation
Material feeding system 350W step less motor
Operating and controlling PLC and touch screen
Machine dimension 5500 x 1600mm (L x W)
Decoiler (load equipment)

Manual decoiler

Load capacity max. 5Ton



Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank 0

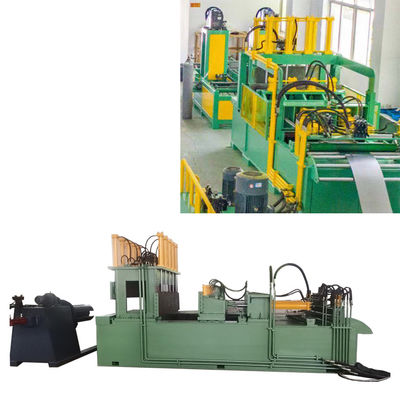

Fig 1:Corrugated fin forming machine BWX1300-400's full view



Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank 1

Fig 2: Corrugated fin forming machine BWX1300-400's decoiler



Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank 2Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank 3Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank 4Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank 5Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank 6Corrugated Transformer Oil Tank Making Machine Transformer Corrugated Tank 7
