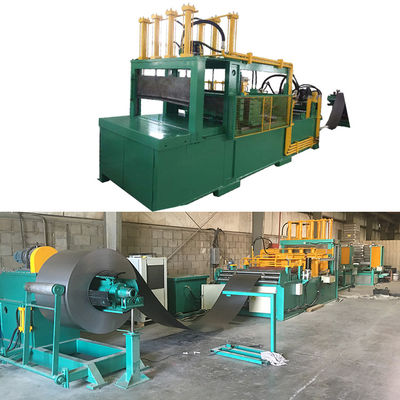

Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min

Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min

Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min
Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min

Large Image :  Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BWX1600-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Corrugated Fin Forming Machine Strip Width: 300 ~ 1600mm
Corrugated Fin Height: 50 ~ 400mm Corrugated Fin Pitch: ≥40mm
Working Speed: 4 Fins/min Color: As Requested
Usage: Making Transformer Oil Tank Warranty Period: 12 Months
High Light:

Corrugated Fin Forming Machine 4 fins/min

,

400mm Transformer Fin Forming Machine

,

1600mm Corrugated Fin Forming Machine

Automatic transformer oil tank corrugated fin forming machine





Description of corrugated fin forming machine BWX1600-400



Corrugated fin making machine is composed of fin forming unit, fin welding unit, decoiler and oil cooler. The corrugated fin forming machine is special designed for bending the steel plate to make corrugated fins.The machine can bend the plate between the fins or at the end of the plate, which can save time of assembling and welding the corrugated tank, meanwhile reduce the leakage risk.





Main components of corrugated fin forming machine BWX1600-400

  • Decoiler
  • Fin forming unit
  • Fin welding unit
  • Oil cooler


Main parameters of corrugated fin forming machine BWX1600-400:



1.width of raw steel coil: 300-1600mm
2. steel thickness 0.5 ~ 1.75mm
3. fin height 100-400mm
4. fin distance: 45-80mm
5. decoiler: mechanical expansion, capacity 5 tons
6. hydraulic station, 35-30MPA
7. PLC control system

8. working speed: 3 ~ 4 fins/min



Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min 0

Fig 1: Corrugated fin forming machine BWX1600-400's forming unit

Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min 1

Fig 2: Corrugated fin forming machine BWX1600-400's welding machine

Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min 2

Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min 3Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min 4Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min 5Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min 6Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min 7Automatic Transformer Oil Tank Corrugated Fin Forming Machine 4 Fins/Min 8
