Corrugated Fin Forming Machine For Making Transformer Oil Tank

Corrugated Fin Forming Machine For Making Transformer Oil Tank

Corrugated Fin Forming Machine For Making Transformer Oil Tank
Corrugated Fin Forming Machine For Making Transformer Oil Tank

Large Image :  Corrugated Fin Forming Machine For Making Transformer Oil Tank Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: BWX1300-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Corrugated Fin Forming Machine Sheet Width: 300 ~ 1300mm
Fin Height: 50 ~ 400mm Fin Pitch: 45 ~ 60mm
Feeding Speed: 3 ~ 4 Fins/min Machine Color: Customized
Function: Making Corrugated Fins Warranty Period: 12 Months
High Light:

Corrugated Fin Forming Machine 3 Fins/Min

,

Transformer Oil Tank Fin Forming Machine

,

Customized Corrugated Fin Forming Machine

Corrugated Fin Forming Machine For Making Transformer Oil Tank



Introduction of corrugated fin forming machine BWX1300-400

Corrugated fin forming machine BWX1300-400 is a professional equipment to make corrugated fins. This kind of corrugated fins can be used to make transformer oil tank. Before running the machine, some parameters, such as fin pitch, fin height and fin quantity, can be preset. The main components of corrugated fin making machine include guide mechanism, hydraulic forming unit, hydraulic cutting unit, etc. The corrugated fin forming machine features easy operation, smooth running and so on.





Quick details of corrugated fin forming machine BWX1300-400

  • Steel coil width 300~1300mm
  • Sheet thickness 0.5~1.75mm
  • Fin width 300~1300mm
  • Fin height 50~400mm



Main parameters of corrugated fin forming machine BWX1300-400



Typical standard specifications of corrugated fin making machine BWX1300-400 are shown below, however, the corrugated fin making machine can also be manufactured as requested.



Item BWX1300-400
Steel Coil Width: 300~1300mm
Thickness of sheet: 0.5~1.75mm
Fin Width: 300~1300mm
Fin Height: 50~400mm
Distance between fins: >40mm
Fin Gap(oil groove): >4mm
Forming Speed: 3~4 fins/min
Power: 30KW



Corrugated Fin Forming Machine For Making Transformer Oil Tank 0

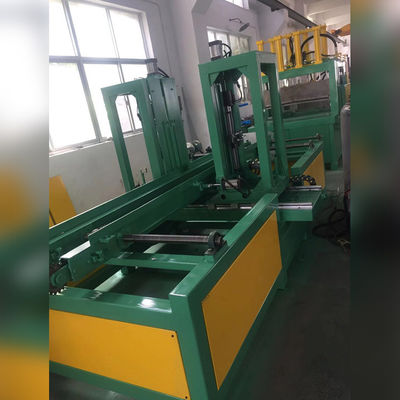

Fig 1: Corrugated fin forming macihne BWX1300-400's side view



Corrugated Fin Forming Machine For Making Transformer Oil Tank 1

Fig 2: Corrugated fin forming machine BWX1300-400's decoiler



Corrugated Fin Forming Machine For Making Transformer Oil Tank 2Corrugated Fin Forming Machine For Making Transformer Oil Tank 3Corrugated Fin Forming Machine For Making Transformer Oil Tank 4Corrugated Fin Forming Machine For Making Transformer Oil Tank 5Corrugated Fin Forming Machine For Making Transformer Oil Tank 6
