Product Details:
Payment & Shipping Terms:
|
| Name: | Corrugated Fin Forming Machine | Strip Width: | 300 ~ 1300mm |
|---|---|---|---|
| Fin Height: | 50 ~ 400mm | Fin Pitch: | ≥40mm |
| Feeding Speed: | 4 Fins/min | Machine Color: | Customized |
| Usage: | Making Transformer Oil Tank | Warranty Period: | 12 Months |
| High Light: | Transformer Corrugated Fin Forming Machine,400mm Corrugated Fin Making Machine,Corrugated Fin Forming Machine 1300mm |
||
Automatic Transformer Corrugated Fin forming Machine
Transformer Corrugated fin forming machine BWX1300-400 is mainly used to make corrugated fins and weld the fins together to make transformer oil tanks. The fin’s pitch, height and the quantity can be preset through a preset. The machine’s main parts include guide rail, hydraulic forming unit, hydraulic cutting unit, etc. The decoiler of the Corrugated Fin making machine can bear the coil with maximum width 1300mm and maximum weight 8000kgs.
Main components of Corrugated fin forming machine BWX1300-400
Main parameters of corrugated fin forming machine BWX1300-400
Typical standard specifications of BWX1300-400 are shown below, however these can be easily modified as requested.
| Item | BWX1300-400 |
| Steel Coil Width: | 300～1300mm |
| Thickness of sheet: | 0.5～1.75mm |
| Fin Width: | 300～1300mm |
| Fin Height: | 50～400mm |
| Distance between fins: | >40mm |
| Fin Gap(oil groove): | >4mm |
| Forming Speed: | 3～4 fins/min |
| Welding Speed: | 2 fins / min |
| Distance between fins: | 41 ~ 60mm |
| Air source: | 0.8Mpa |

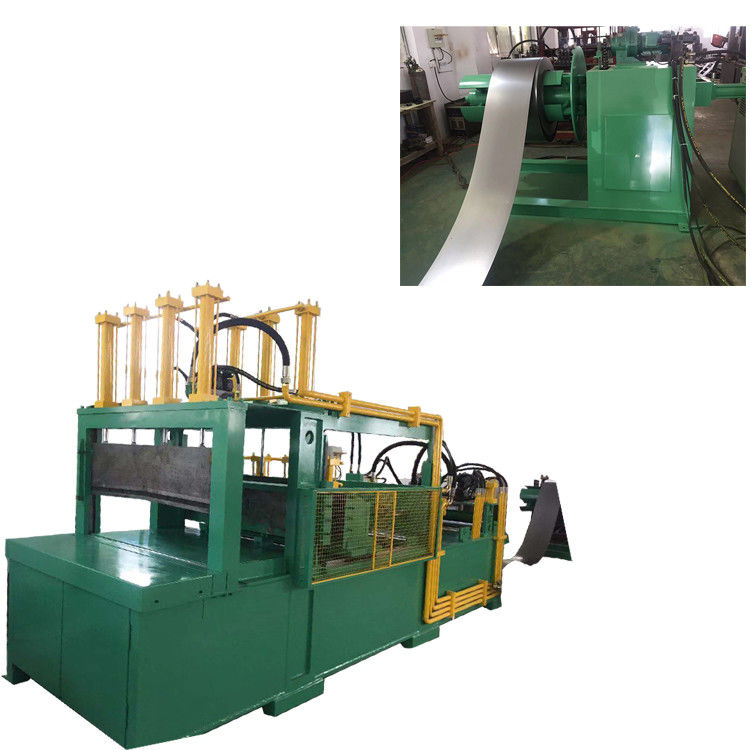

Fig 1: Corrugated fin forming machine BWX1300-400's side view

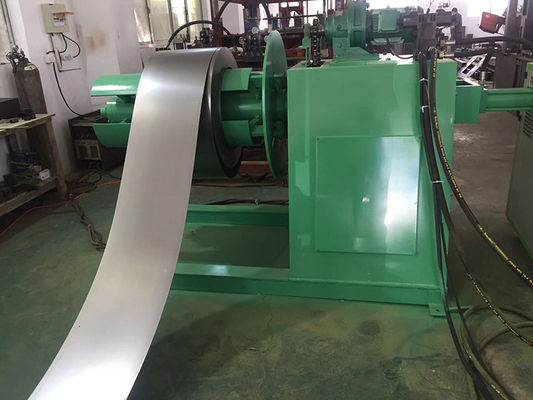

Fig 2: Corrugated fin forming machine BWX1300-400's dereeler
