Introduction of silicon steel cutting machine HJX600-LL

Automatic silicon steel cutting machine HJX600-LL is a double shearing and double punching type silicon steel cutting machine, which can be used to shear, punch, and notch iron core sheet to makes fully inclined seam, half inclined seam and straight seam transformer iron core. This kind of core can be used in transformers, reactors and other similar products. The machine can stack the cut strip in order.

Quick details of silicon steel cutting machine HJX600-LL

1.Expanding decoiler

2.Automatic feeding unit
3. Punch unit
5.Cutting unit

6. Outlet platform
7. Depiler and sorting machines

8. Catching material machine

9. Pneumatic system

10. PLC based control system

Technical parameters of silicon steel cutting machine HJX600-LL

Typical standard specifications of HJX600-LL are shown below, however this can be modified in as requested.

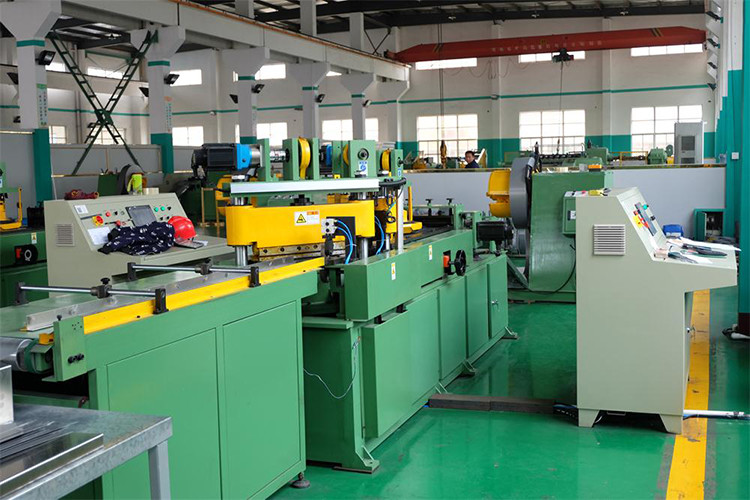

Fig 1: Silicon steel cutting machine HJX600-LL's full view

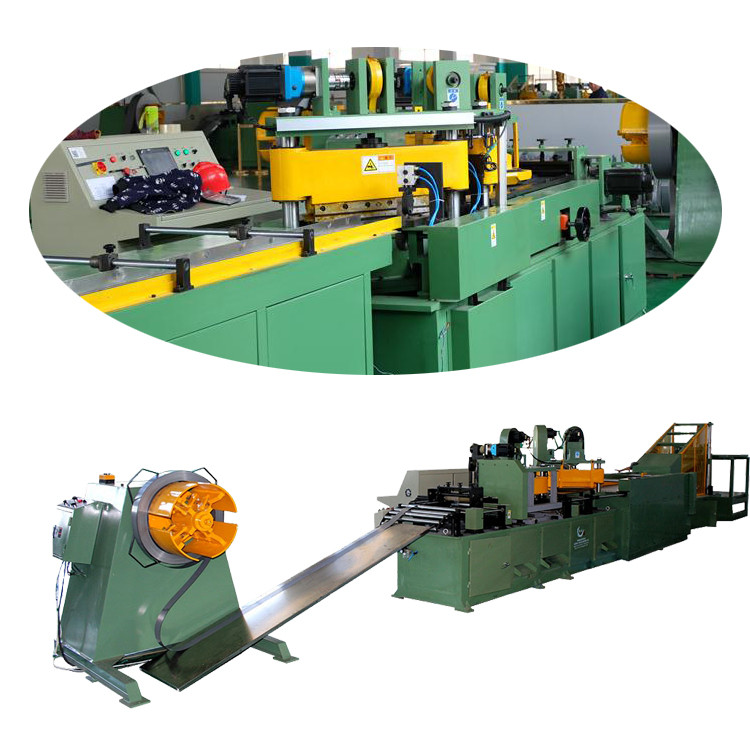

Fig 2: Silicon steel cutting machine HJX600-LL's side view
