Cantilever Transformer Foil Coil Winding Machine Copper Strip Winder

Factory Direct Sales Copper Strip Winder Cantilever Transformer Foil Winding Machine


Description of transformer foil winding machine

Cantilever transformer foil winding machine XB-BRJ300 is a special winding equipment for winding small transformer coil and other similar products. The transformer foil winding machine can wind copper or aluminium strip with max width 300mm. The transformer foil winding machine can handle one layer of foil and one or two layers of insulation paper. This kind of transformer foil winding machine is provided with PLC control system, which can make the machine run automatically as per the parameters input.


Main Components of transformer foil winding machine

1. Main frame
2. Foil decoiler
3. Pressing roller
4. Winding unit
5. Insulation decoiler
6. Edge alignment system
7. Automatic cold welding unit
8. Pneumatic unit
9. Electrical control system
10. Foot pedal


Technical Parameters of transformer foil winding machine XB-BRJ300

Typical standard specifications of transformer foil winding machine XB-BRJ300 are shown below, however these can be modified as requested.

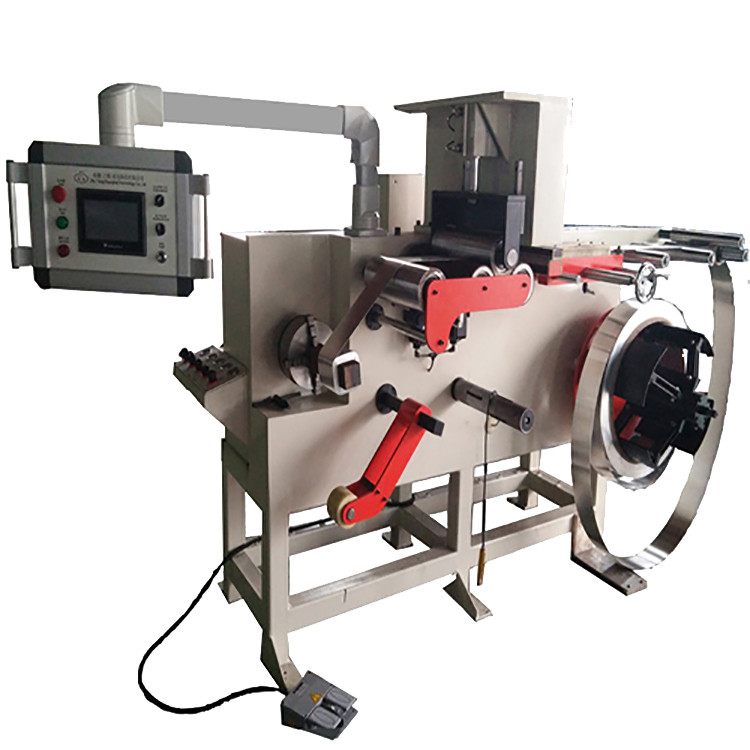

Fig 1: Transformer foil winding machine XB-BRJ300's full view

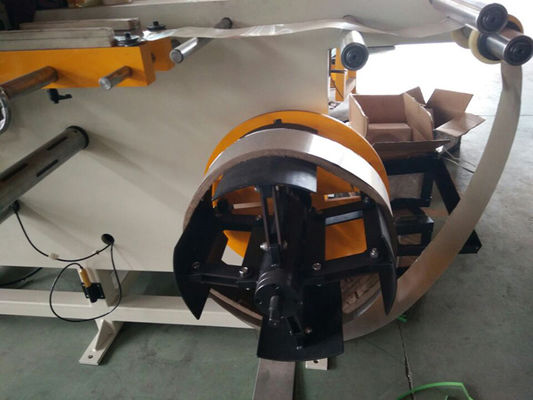

Fig 2: Transformer foil winding machine XB-BRJ300's foil decoiler
