| Name: | Simple Transformer Foil Winding Machine | ||
|---|---|---|---|
| Highlight: | 20rpm power transformer winding machine,15kw lv winding machine,15kw power transformer winding machine |
||
Simple Copper and Aluminium Strip Winder LV Transformer Foil Winding Machine
Description of transformer foil winding machine JJ-BRJ800-2
Simple transformer foil winding machine JJ-BRJ800-2 is one of simple and practical transformer foil winding machines, which can be used to wind dry type transformer foil coils. The kind of transformer foil winding machine can handle one or two layers of copper or aluminium foil conductors and one or two layers of insulation paper. It is very easy to operate the kind of foil winding machine.
Main components of transformer foil winding machine JJ-BRJ800-2
Main parameters of transformer foil winding machine JJ-BRJ800-2
| Foil Width: | Maximum 800mm |
| Wound Coil Shape: | oval, round and rectangular |
| Foil Material OD.: | ≤1,000mm |
| Foil Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 850mm |
| Foil Decoiler Expanding Range: | 400-520mm |
| Winding Motor: | 15KW |
| Winding Shaft Size: | 80×80×1150 mm |
| Rotating Speed: | 0～20 Rpm |
| Insulation Decoiler Number: | 2 pcs |
| Insulation Material OD.: | ≤400mm |
| Insulation Material ID.: | 76mm |
| Insulation Decoiler Length: | 850mm |
| Counting Range: | 0 - 9999.9 |

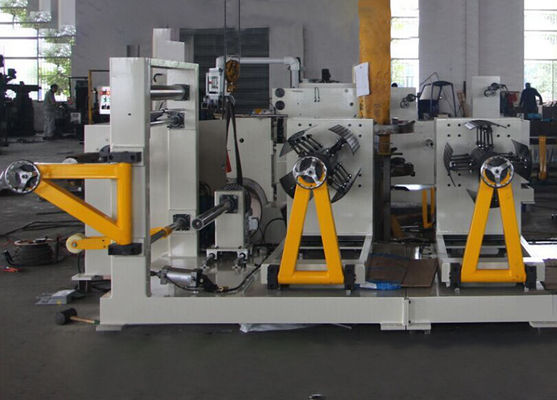

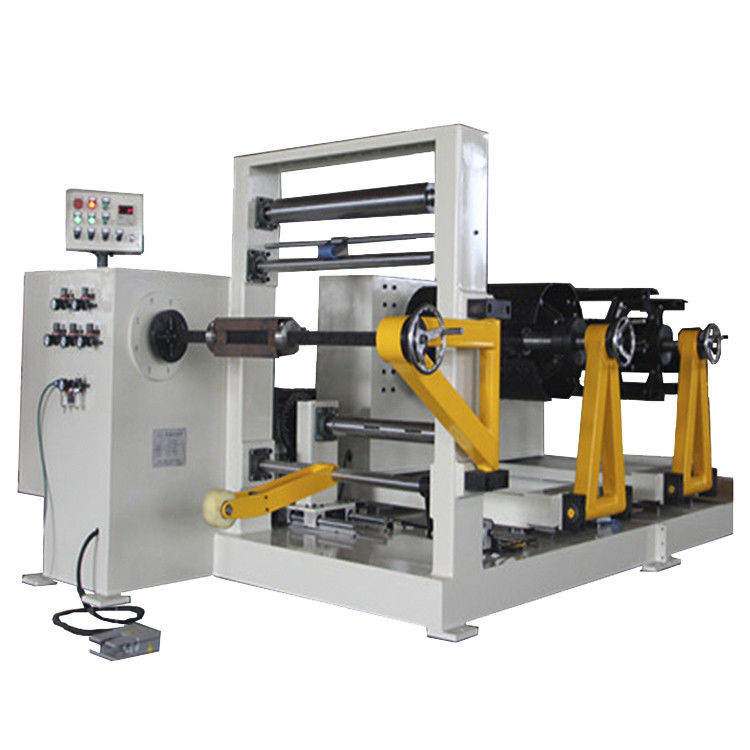

Fig 1: Transformer foil winding machine JJ-BRJ800-2's full view
Fig 2: Transformer foil winding machine JJ-BRJ800-2's foil decoiler
