Cold Pressure Welding Transformer Foil Winding Machine 4kw 0.2 - 3mm

Factory Direct Sales Cold Pressure Welding Transformer Foil Winding Machine

Description of transformer foil winding machine BRJ200

Transformer foil winding machine BRJ200 is a specialized equipment used in the manufacturing of transformers and other similar products. The transformer foil winding machine can wind both copper foil and aluminium foil on a core or a mold to create the desired winding configuration. The transformer foil winding machine is provided with cold pressure welding unit for welding different material together, such as welding aluminium foil and copper bus bar together or welding copper foil and aluminium bus bar together. With one touch screen and HMI, it is very easy to operate the transformer foil winding machine. The transformer foil winding machine features slow staring, accurate moving, high automation, easy operation and so on.

Quick details of transformer foil winding machine BRJ200

• Automatic winding conductor foil
• Foil material ID 500mm
• Maximum oil material OD 1000mm
• Winding speed 0 ~ 60rpm
• Winding motor power 4kw
• Automatic cold welding unit
• One year warranty

Technical parameters of transformer foil winding machine BRJ200

Typical standard specifications of transformer foil winding machine BRJ200 are shown below, however, the machine can also be manufactured as requested.

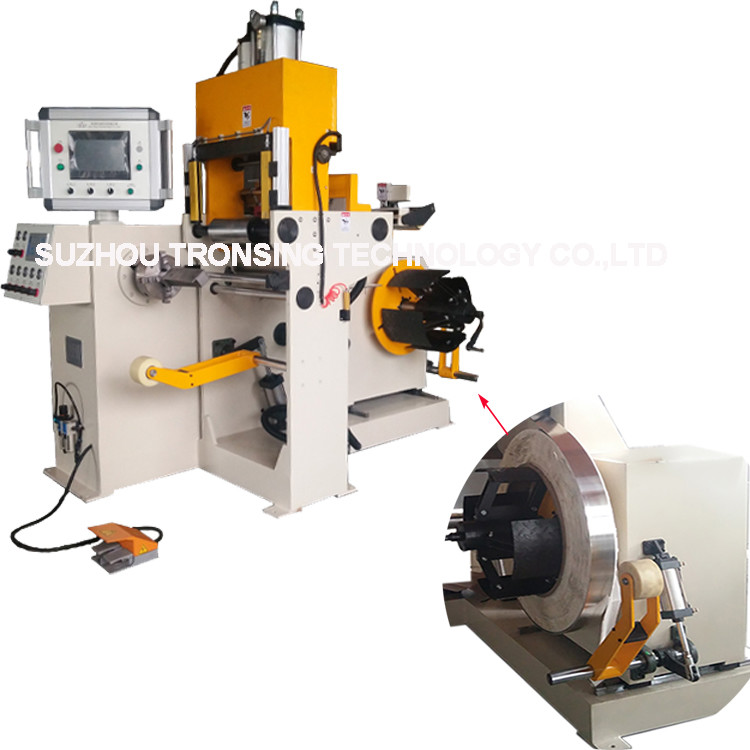

Fig 1: Transformer foil winding machine BRJ200's full view

Fig 1: Transformer foil winding machine BRJ200's side view
