Factory Direct Sales Cold Pressure Welding Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ200
Transformer foil winding machine BRJ200 is a specialized equipment used in the manufacturing of transformers and other similar products. The transformer foil winding machine can wind both copper foil and aluminium foil on a core or a mold to create the desired winding configuration. The transformer foil winding machine is provided with cold pressure welding unit for welding different material together, such as welding aluminium foil and copper bus bar together or welding copper foil and aluminium bus bar together. With one touch screen and HMI, it is very easy to operate the transformer foil winding machine. The transformer foil winding machine features slow staring, accurate moving, high automation, easy operation and so on.
Quick details of transformer foil winding machine BRJ200
Technical parameters of transformer foil winding machine BRJ200
Typical standard specifications of transformer foil winding machine BRJ200 are shown below, however, the machine can also be manufactured as requested.
| Max. Foil Width: | 200mm |
| Finished Coil OD. : | 600mm |
| Wound Coil Shape: | Round, Oval and Rectangle etc. |
| Conductor Material: | Copper or aluminum |
| Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Material ID.: | Φ500mm |
| Maximum Foil Material OD.: | Φ1000mm |
| Foil Decoiler Number: | 1 pc |
| Foil Decoiler Expanding Range: | Φ420 ~ 520mm |
| Max Coil Weight: | 750kg |
| Rectifying Mode: | Photoelectric sensing |
| Insulation Paper Decoiler Number: | 1 set |
| Maximum Insulation Paper Coil OD.: | Φ400mm |
| Insulation Paper Coil ID.: | Φ76mm |
| Insulation Paper Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Winding Speed: | 0 ~ 60 RPM |
| Winding Power: | 4kw |
| Cold Welding Device: | 1 set |
| Control system: | PLC |
| Counting Range: | 0 ~ 9999.9 |

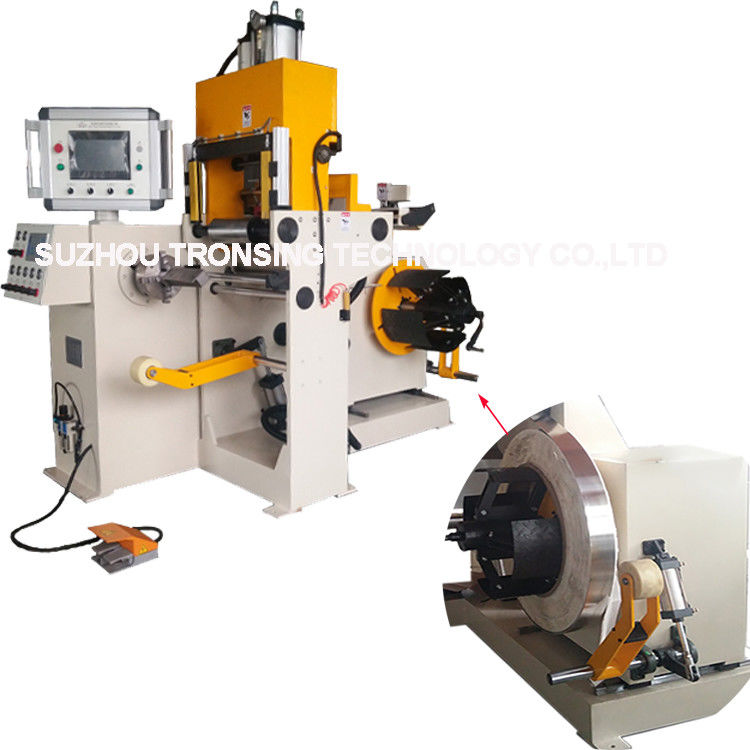

Fig 1: Transformer foil winding machine BRJ200's full view
Fig 1: Transformer foil winding machine BRJ200's side view
