Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment

Electrical Equipment Transformer Making Equipment Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX400

Automatic coil winding machine ZPX400 is one kind of transformer making equipment, which is mainly used to winding transformer coils and other similar products. Both round wire and flat wire can be wound with this kind automatic coil winding machine. The automatic coil winding machine is provided with main winding motor, wire guide, PLC control system, servo motors and so on. The automatic coil winding machine features slow starting, smooth running, big torque and so on. It is very easy to operate the automatic coil winding machine.

Quick details of automatic coil winding machine ZPX400

• 900mm center height
• Maximum 400 winding width
• Winding speed 0 - 200rpm
• Rotating diameter 800mm
• Winding power 3kw
• Servo motor power 0.75kw

Main parameters of automatic coil winding machine ZPX400

The typical standard specifications of coil winding machine ZPX400 are as following, however, the coil winding machine can also be manufactured as requested.

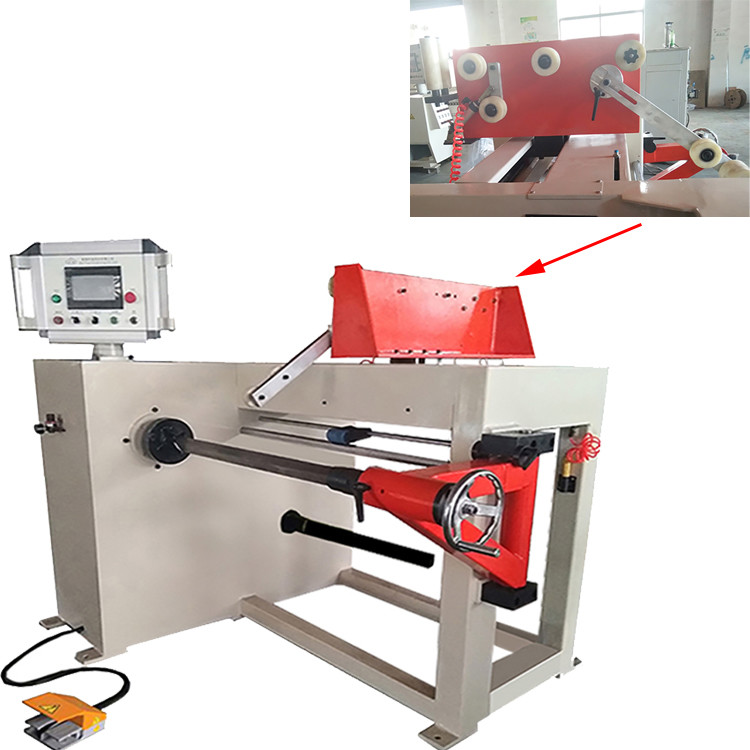

Fig 1: Automatic coil winding machine ZPX400's front view

Fig 2: Automatic coil winding machine ZPX400's wire guide
