Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment

Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment

Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment
Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment

Large Image :  Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Transformer Coil Winding Machine Usage: Winding Wire Coil
Wire Conductor: Aluminium Or Copper Wire Conductor Type: Round Or Flat Wire
Round Wire: ∅0.3 ~ 5.0mm Flat Wire Size: Maximum 5x12mm
Color: Customizable Warranty: 12 Months
High Light:

5.0mm automatic coil winding machine

,

transformer making automatic coil winding machine

,

electrical copper wire coil winding machine



Electrical Equipment Transformer Making Equipment Automatic Coil Winding Machine





Description of automatic coil winding machine ZPX400



Automatic coil winding machine ZPX400 is one kind of transformer making equipment, which is mainly used to winding transformer coils and other similar products. Both round wire and flat wire can be wound with this kind automatic coil winding machine. The automatic coil winding machine is provided with main winding motor, wire guide, PLC control system, servo motors and so on. The automatic coil winding machine features slow starting, smooth running, big torque and so on. It is very easy to operate the automatic coil winding machine.





Quick details of automatic coil winding machine ZPX400

  • 900mm center height
  • Maximum 400 winding width
  • Winding speed 0 - 200rpm
  • Rotating diameter 800mm
  • Winding power 3kw
  • Servo motor power 0.75kw



Main parameters of automatic coil winding machine ZPX400



The typical standard specifications of coil winding machine ZPX400 are as following, however, the coil winding machine can also be manufactured as requested.

Center height: 900mm
Square Shaft Size: 40x40x700mm
Maximum Winding Width: 400mm
Servo Motor Power: 0.75kw
Rotating Speed: 0 ~ 200 rpm
Motor Power: 3kw
Regulating Speed: stepless speed regulation
Flat Wire Size: Maximum 5X12mm
Round Wire Diameter: ∅0.3- ∅5.0mm
Rotating OD.: 800mm max
Maximum Capacity: 500kg
Minimum Spread Pitch: 0.01mm
Counting: 5-digit counting
Maximum Turns Preset: 9999.9
Counting Range: 0 ~ 9999.9



Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment 0

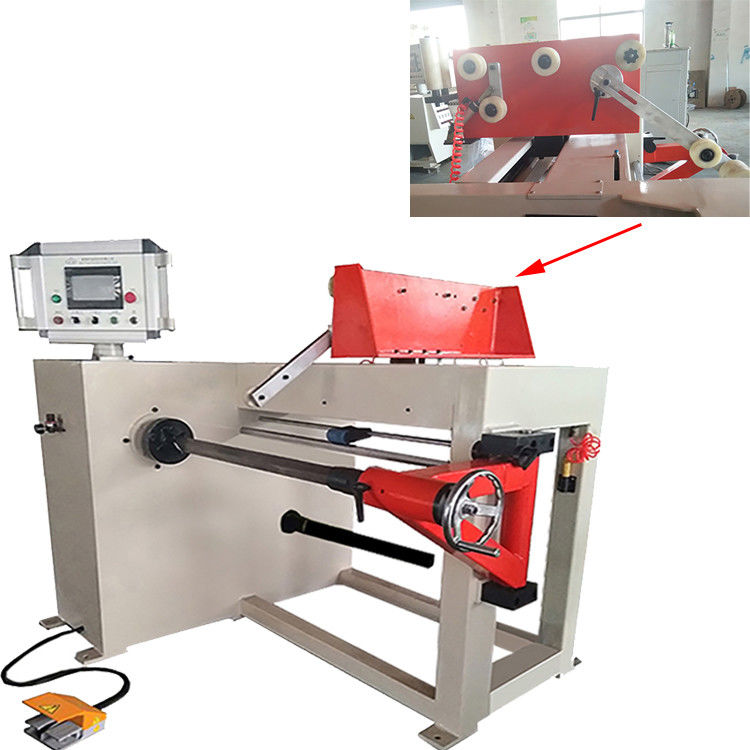

Fig 1: Automatic coil winding machine ZPX400's front view



Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment 1

Fig 2: Automatic coil winding machine ZPX400's wire guide



Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment 2Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment 3Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment 4Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment 5Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment 6Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment 7Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment 8Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment 9Electrical 5.0mm Automatic Coil Winding Machine Transformer Making Equipment 10
