Description of transformer coil winding machine ZPX400

Transformer coil winding machine ZPX400 is a special winder for winding copper or aluminium wires. The wire coils wound by the transformer coil winding machine can be used in transformers or other similar products. The transformer wire guide is provided with a servo motor to drive the wire guide, which guarantees the precision of the move of the wire guide. The maximum winding width of the transformer coil winding machine is 400mm. With PLC control system and HMI, it is very easy to operated the transformer coil winding machine.

Quick details of transformer coil winding machine ZPX400

• 2.2kw motor
• Maximum winding speed 200rpm
• PLC based control system
• Winding flat or round wire
• pneumatic system
• Foot pedal

Technical parameters of transformer coil winding machine ZPX400

Typical standard specifications of transformer coil winding machine ZPX400 are shown below and the transformer coil winding machine can also be manufactured as requested.

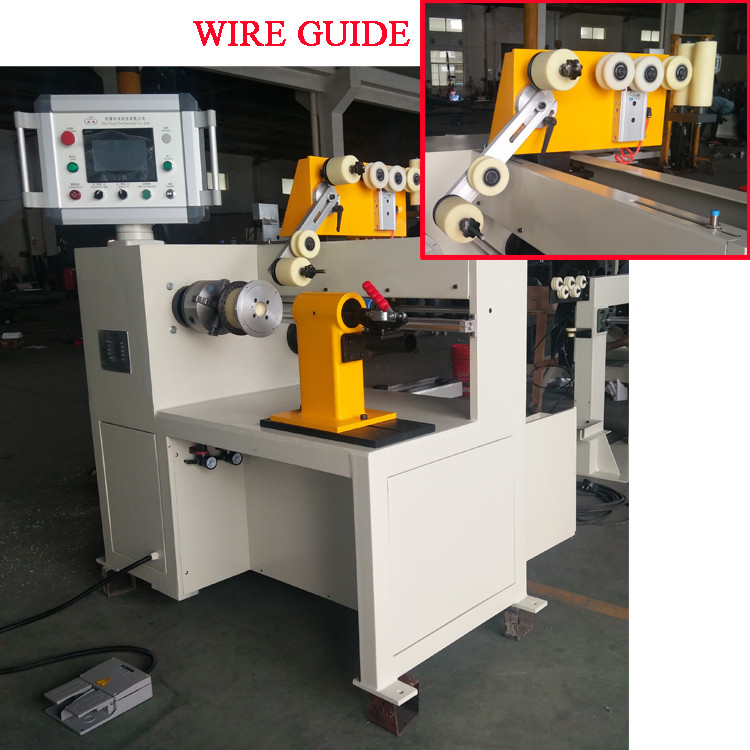

Fig 1: Transformer coil winding machine ZPX400's front view

Fig 2: Transformer coil winding machine ZPX400's 4-jaw chuck
