Flat Wire Automatic Coil Winding Machine Programmable

Industry Equipment Wire Coil Winder Programmable Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX400

Automatic coil winding machine ZPX400 is a special winding equipment for making transformer wire coils and other similar products. The automatic coil winding machine can wind both round wire and flat wire. With PLC control system, the coil winding machine features slow starting, smooth running and precision control etc. The wire guide is used for laying wire when winding, which is driven by a servo motor with 750w power. Before winding, some parameters can be input through a touch screen. It is very easy to operate the automatic coil winding machine.

Quick details of automatic coil winding machine ZPX400

• 900mm center height
• Maximum 400 winding width
• Winding speed 0 - 200rpm
• Rotating diameter 800mm
• Winding power 3kw
• Servo motor power 0.75kw

Main parameters of automatic coil winding machine ZPX400

The typical standard specifications of coil winding machine ZPX400 are as following, however, the coil winding machine can also be manufactured as requested.

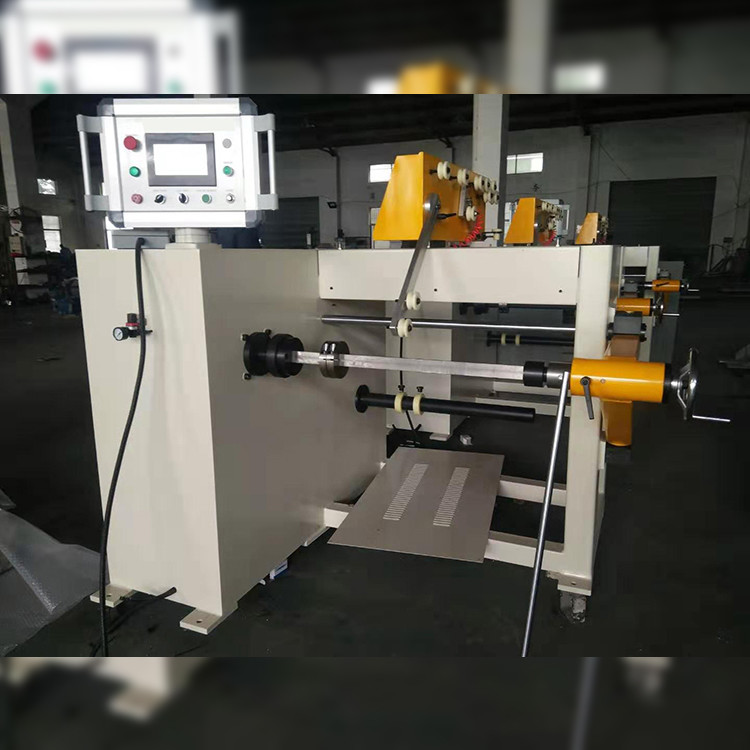

Fig 1: Automatic coil winding machine ZPX400's front view

Fig 2: Automatic coil winding machine ZPX400's wire guide
