Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transformer Coil Winding Machine | Funciton: | Winding Wire Coil |
|---|---|---|---|
| Conductor: | Aluminium Or Copper Wire | Conductor Type: | Round Or Flat Wire |
| Round Wire: | ∅0.3 ~ 5.0mm | Flat Wire Size: | Maximum 5x12mm |
| Color: | Customizable | Warranty: | 12 Months |
| High Light: | Flat Wire Automatic Coil Winding Machine,Programmable Automatic Coil Winding Machine,Programmable Wire Coil Winder |
||
Industry Equipment Wire Coil Winder Programmable Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX400
Automatic coil winding machine ZPX400 is a special winding equipment for making transformer wire coils and other similar products. The automatic coil winding machine can wind both round wire and flat wire. With PLC control system, the coil winding machine features slow starting, smooth running and precision control etc. The wire guide is used for laying wire when winding, which is driven by a servo motor with 750w power. Before winding, some parameters can be input through a touch screen. It is very easy to operate the automatic coil winding machine.
Quick details of automatic coil winding machine ZPX400
Main parameters of automatic coil winding machine ZPX400
The typical standard specifications of coil winding machine ZPX400 are as following, however, the coil winding machine can also be manufactured as requested.
| Center height: | 900mm |
| Square Shaft Size: | 40x40x700mm |
| Maximum Winding Width: | 400mm |
| Servo Motor Power: | 0.75kw |
| Rotating Speed: | 0 ~ 200 rpm |
| Motor Power: | 3kw |
| Regulating Speed: | stepless speed regulation |
| Flat Wire Size: | Maximum 5X12mm |
| Round Wire Diameter: | ∅0.3mm ~ ∅5.0mm |
| Rotating OD.: | 800mm max |
| Maximum Capacity: | 500kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting: | 5-digit counting |
| Maximum Turns Preset: | 9999.9 |
| Counting Range: | 0 ~ 9999.9 |

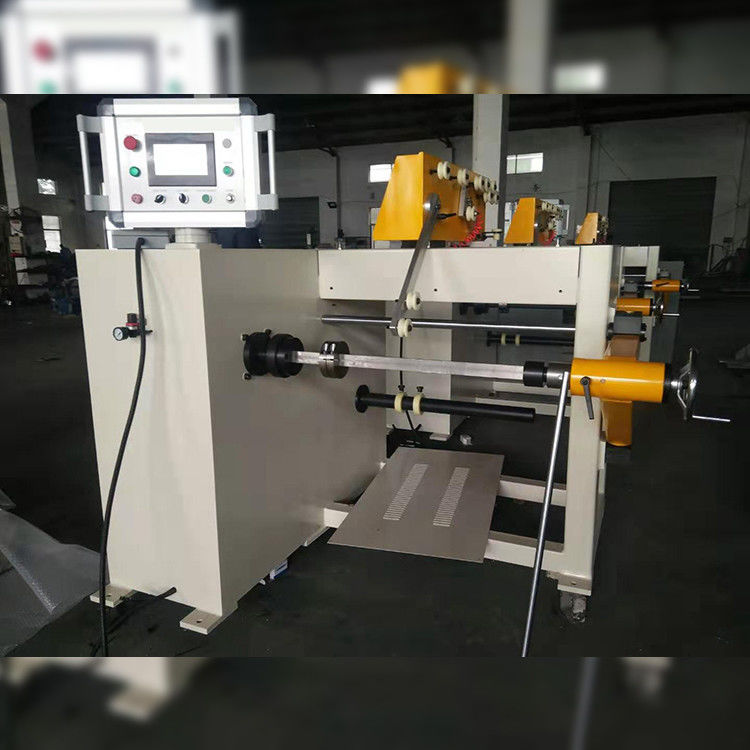

Fig 1: Automatic coil winding machine ZPX400's front view
Fig 2: Automatic coil winding machine ZPX400's wire guide
