Introduction of transformer foil winding machine BRJ1600-2

Transformer foil winding machine BRJ1600-2 is one of heavy duty professional transformer making equipment, which can be used to make transformer coils and other similar products. Both copper foil and aluminium foil with maximum width 1600mm can be wound by this kind of transformer foil winding machine. 30KW motor is used to drive the machine. PLC control system is adopted to control the machine, which make the machine can run automatically. With a user friendly interface of the touch screen, it is very easy to operate the transformer foil winding machine.


Features of transformer foil winding machine BRJ1600-2

• Slow starting, when the machine starts, the winding speed is very slow for safety
• Running smooth, the machine runs smoothly during running
• High automation, control system based on PLC makes the machine high automation
• Full function
• Big power, the machine is with 30kw motor
• Neat foil edge, de-burring unit make the foil edge neat
• Tight winding, big tension guarantees tight winding
• Easy operation

Main parameters of transformer foil winding machine BRJ1600-2

The following is the standard specification of transformer foil winding machine BRJ1600-2, however, the transformer foil winding machine can also be manufactured as requested.

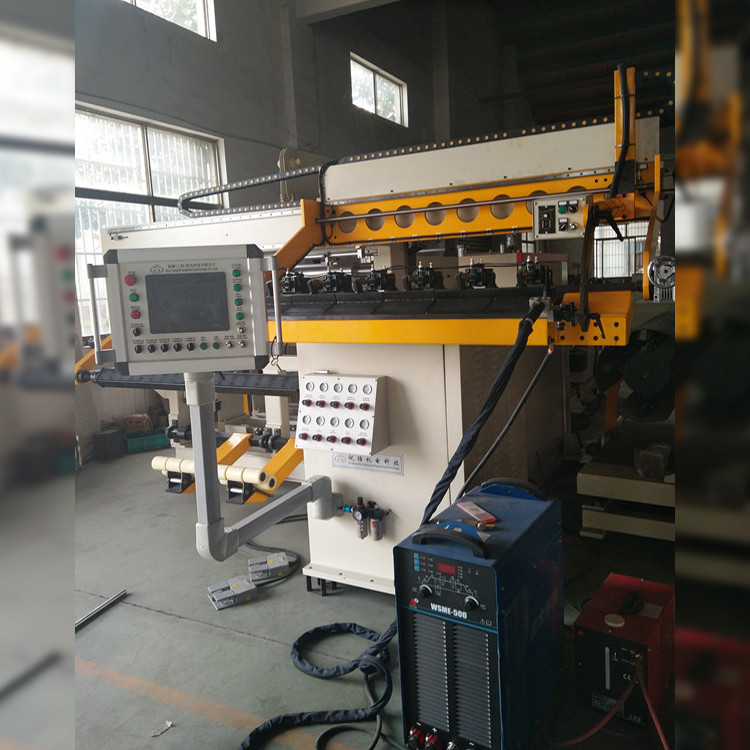

Fig 1: Transformer foil winding machine BRJ1600-2's front view


Fig 2: Transformer foil winding machine BRJ1600-2's back view
