| Name: | Tranformer Foil Winding Machine | Usage: | Winding Dry Type Transformer Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Winding Speed: | 0 ~ 16rpm | Motor Power: | 30kw |
| Machine Color: | Optional | Warranty: | 12 Months |
| High Light: | Dry Type Transformer Coil Winder,TIG Welding Foil Winder,Transformer Foil Winding Machine Heavy Duty |
||
Heavy Duty Copper Foil Winder TIG Welding Transformer Foil Winding Machine
Introduction of transformer foil winding machine BRJ1600-2
Transformer foil winding machine BRJ1600-2 is one of heavy duty professional transformer making equipment, which can be used to make transformer coils and other similar products. Both copper foil and aluminium foil with maximum width 1600mm can be wound by this kind of transformer foil winding machine. 30KW motor is used to drive the machine. PLC control system is adopted to control the machine, which make the machine can run automatically. With a user friendly interface of the touch screen, it is very easy to operate the transformer foil winding machine.
Features of transformer foil winding machine BRJ1600-2
Main parameters of transformer foil winding machine BRJ1600-2
The following is the standard specification of transformer foil winding machine BRJ1600-2, however, the transformer foil winding machine can also be manufactured as requested.
| Foil Width: | 350 ~ 1,600mm |
| Maximum Finished Coil OD.: | 1,000mm |
| AL Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Insulation Decoiler Number: | 2 pcs |
| Winding Power: | 30kw |
| Winding Speed: | 0 ~ 16rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic control |
| Cleaning Foil Device: | Pneumatic control |
| Edge Alignment System: | Photoelectric sensing |
| Counting Turns Range: | 0 - 9999.9 |

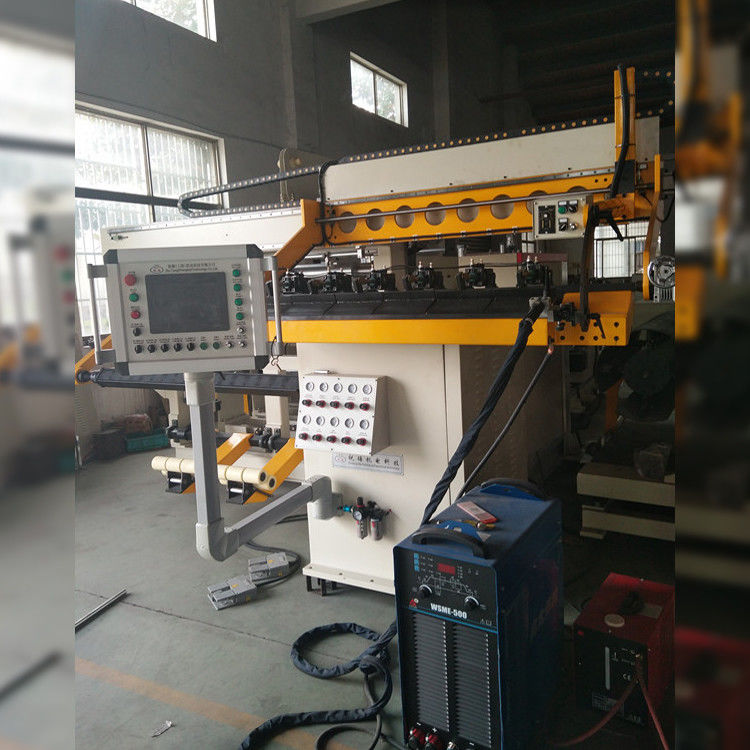

Fig 1: Transformer foil winding machine BRJ1600-2's front view
Fig 2: Transformer foil winding machine BRJ1600-2's back view
